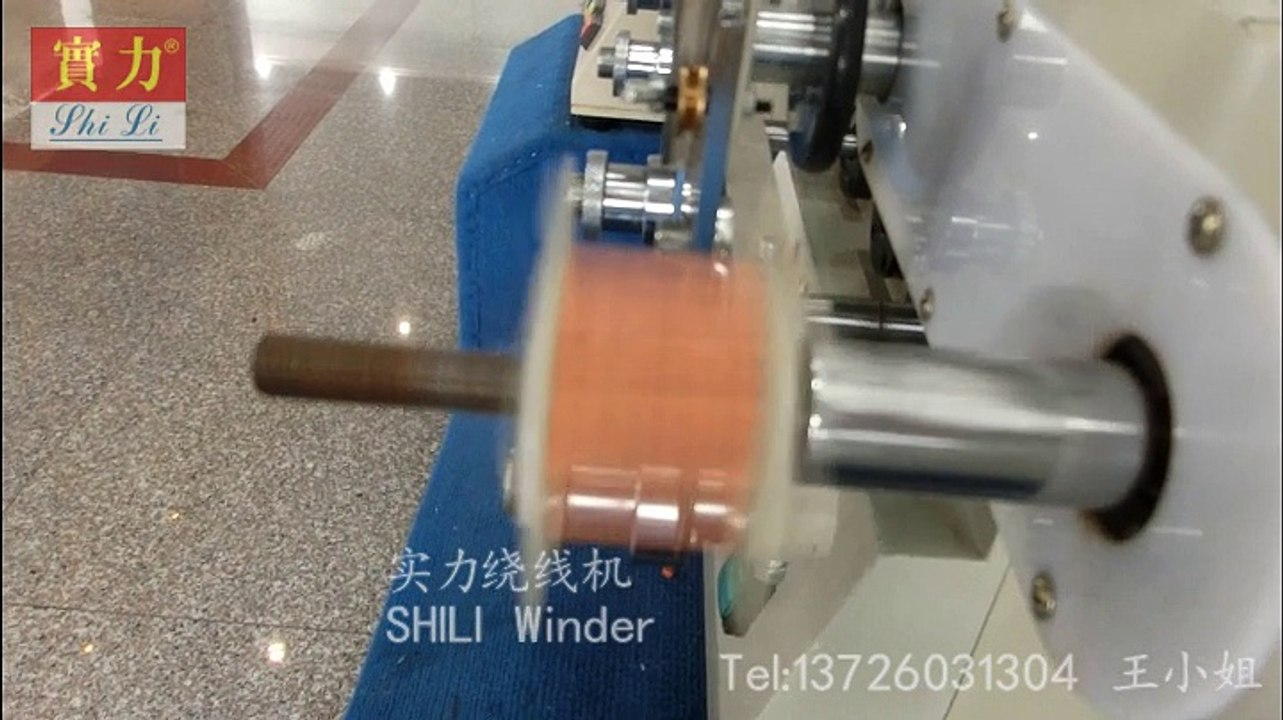

SRBC23-4  Automatic Winding Machine

Machine Feature:
Four spindle synchronous design, uses the  cast iron body, high speed, low noise, small size,is the preferred product assembly line.This machine design of 32 bit controller chip, It’ll be faster, and higher reliability.In Chinese and English display,easy to operation,winding data retention after power failure, not to discarded products。All the parts for this machine are imported prats,such as:Japan Bearing (NSK、NTN),Japan BANDO belt ，Japan GATES belt ，Taiwan Ball screw (TBI)，Taiwan Transducers and so on.

Function and feature：
①Using the latest synchronization with the coupling cable controller.
②With self detection, including setting error, speed tracking and velocity calibration.
③Optional lifting speed of main spindle.
④With ruler function can be easily measured width and start point.
⑤Start moving speed of the spindle motor to climb time to decide by yourself.

Application range：
EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,Switch power transformer and special products.

Specifications：
Spindle number 4
Wire size range 0.04-0.45mm
Loop diameter 80mm
The max wire spacing 9.99mm
Winder width 100mm
Spindle pitch 165mm
Max speed 6000 turn/min
Spindle motor Phase motor+AC Drivers
Winder motor Stepping motor
Input power 220V  50HZ/60HZ
Machine size 930×490×630mm
Package size 980×670×680mm
Net weight 85kg
Gross weight 100kg
