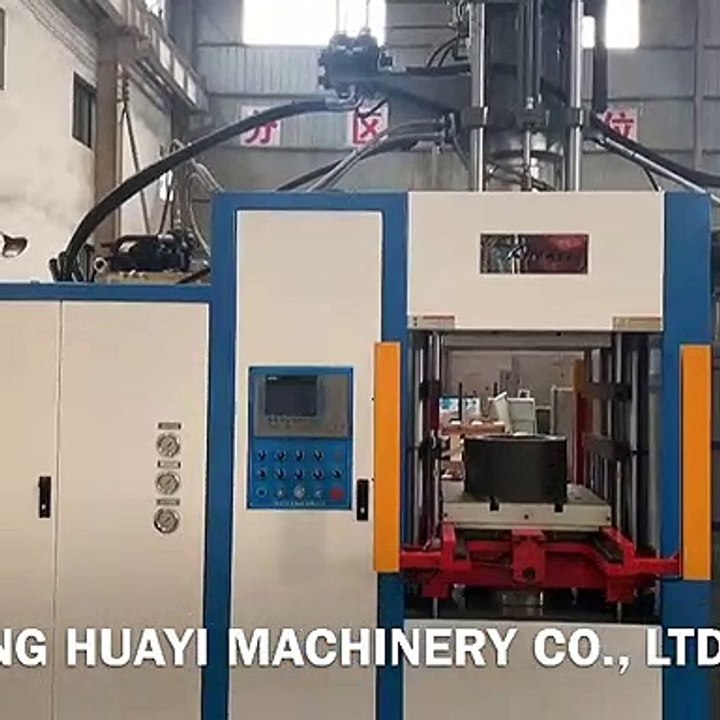

Vertical rubber injection machine

HUAYI Machinery-Vertical Rubber Injection Machine
Vertical rubber injection machine, with vertical injection unit is on the center axis of the clamping pressure, can provide powerful injection pressure and high injection speed, and vertical rubber injection machine is most traditional rubber injection machine design in the world.
Four-column vertical rubber injection machine ensures machine durability;
First in last out injection way, high speed injection, less injection pressure loss;
Multi steps injection pressure and speed can be adjustable;
Equipped with fast clamping cylinders to achieve slow-fast-slow clamping speed, low pressure mold clamping protection controlled by PLC ensure no injuries for molds or operator;
Sturdy design of clamping unit for high stability and parallelism;
Siemens fast response electrical controlling system, simple operation interface and flexible automatic flowchart selection;
PLC monitor entire production process, 300 sets of production recipes can save and USB data transmission conveniently
High precise heating platen temperature controlling,PID temperature automatic calibration by PLC;
Germany high performance heating insulation plates effectively prevents heat loss;
Independent temperature detection and control for rubber machine injection unit, plastic unit, Huayi own made TCU with compact size and accurate temperature controlling ,which interlock with machine PLC;
Multi demolding devices can be selected as per various rubber molds production requests;
CE Certification option is available;
First in First out injection is available
