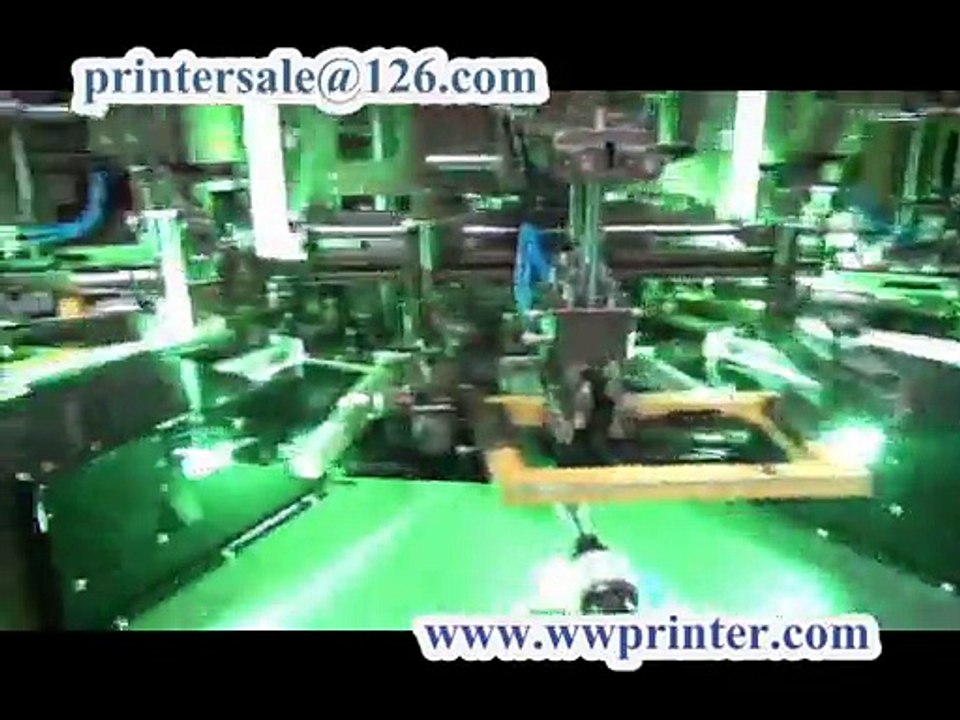

tube or container screen printer decorating machine

Website: www.wwprinter.com
http://www.wwprinter.com/auto-screen-printer-machine-1.html
Email: printersale@126.com
The auto tube or jar screen printer machine is three color decorating machine.
Fast and safe gear changeover structure,tooling change oval time is very short.(more time save)
Avoid to crash for registration system(machine more stability)
Mandrel has separate vacuum system(more printing precision)
Highly efficiency and energy conservation(more power save)


Main components from SMC, Panasonic etc famous brand.

Frame & structures made by high intensity aluminum alloy and stainless steel.


The screen printer with function of “No-tube, No-printing” system, auto counter, faulty alarm device etc .
======================================================


Options:
This type of auto tube or jar screen printer is fit for all cylindral container decorating. Function options: auto loading system(unscrambler),anti-static device, flame treatment and hot foil stamping system.
Parameters:

1:Max.Printing size:
Tube: (φ16-60mm)x(L:20-220mm)
Jar: (φ20-90mm)x(L:20-55mm)
2:Speed(Pieces/minute):60
3:Machine size(LxWxH): 290X230X240cm
4:Net Weight: 3500kg
5:Air Pressure(bar): 5-7
6:Power: 380V/3P 50Hz 18kw
