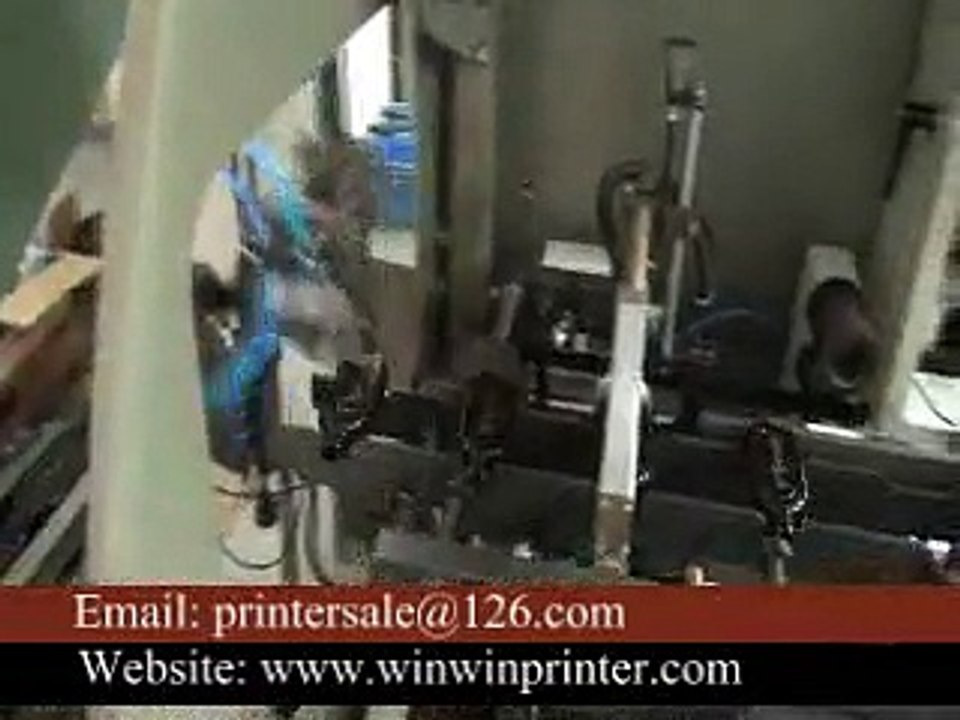

Auto 4 Color Container/Bottle Screen Printer Machine(container decorating machine)

Product Name: Auto 4 Color Container/Bottle Screen Printer Machine(container decorating machine)
Model: ASP M4
Applications:
Auto Container/Bottle Screen Printer Machine is fit for round,square and oval container/bottle printing.
For example: shampoo bottle, baby feeder, perfume bottle etc.
Features:

1.Fuly mechanical design and combined with PLC control system
2.More reliability and efficiency than. Pneumatic screen printer machine
3.Main components from SMC, Panasonic etc famous brand.
4.Frame & structures made by high intensity aluminum alloy and stainless steel.
5.Easy operation with PLC with HMI controlling system.
6.Fast setup & quick tooling change over.
7.From round tooling to another round tooling change oval time is one hour for this 4 color screen printer.
8.From round tooling to square or oval tooling change oval time is two hours for this 4 color screen printer.
9.The screen printer with function of “No-bottle, No-printing” system, auto counter, faulty alarm device,
turn-around system, .
Options:
This type of auto screen printer is fit for round,oval and square bottles decorating, Function options: auto
loading system(unscrambler),anti-static device, flame treatment and other customizations due to order.
Parameters:
1:Max.Printing size: Round Container: (φ25X100mm)x(60-280mm)
Oval Container: 40-120mm (Width) 60-280mm (Height)　
2:Speed(Pieces/minute): Round:60 Oval: 75
3:Machine size(LxWxH): 700X140X160cm
4:Net Weight: 4800kg　　
5:Air Pressure(bar): 5-7　
6:Power: 380V/3P 50Hz 28kw
