TCKB Prototype
Description

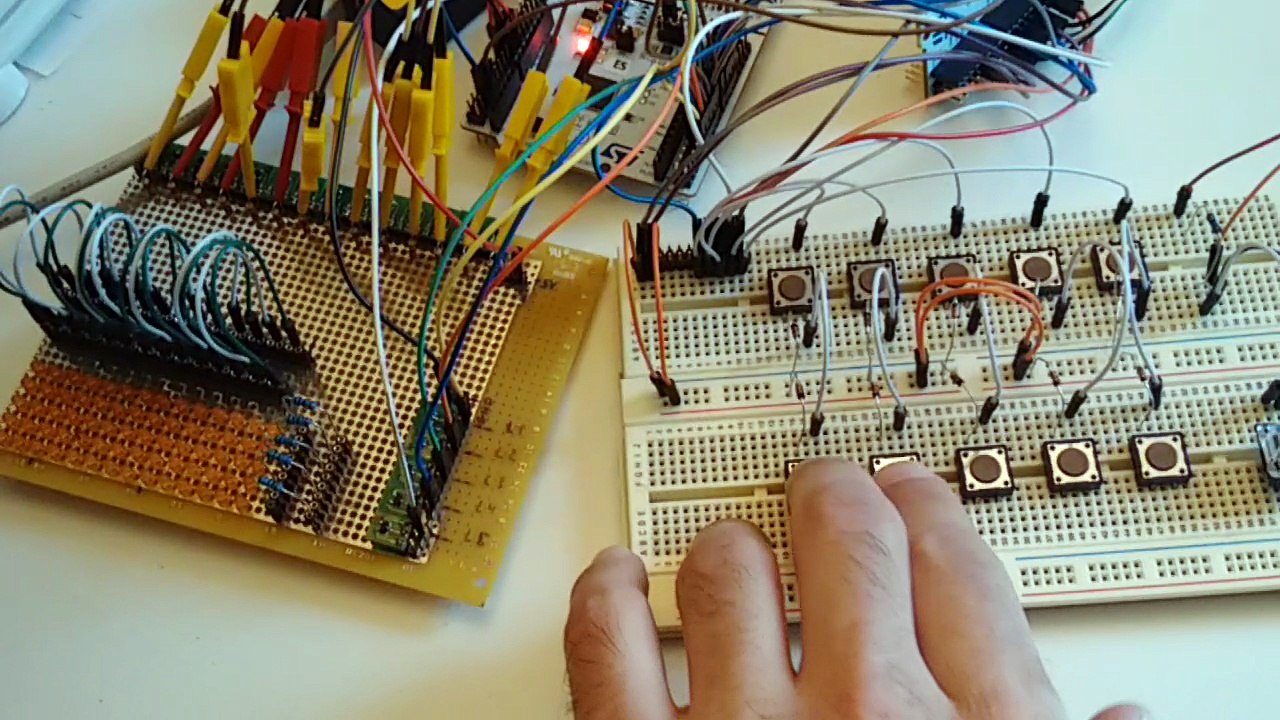

This is the second prototype of my TCKB keyboard (the fist one had only one microcontroller, no leds and no real time operating system).
Hardware:
2x STM32L053 Cortex M0 nucleo proto board
- One for key matrix and usb driver
- One for led matrix with single led brightness control (no rgb!)
Software:
FreeRTOS in each microcontroller with hand made polling, debounce and spi protocol between key and leds controller.
Hardware:
2x STM32L053 Cortex M0 nucleo proto board
- One for key matrix and usb driver
- One for led matrix with single led brightness control (no rgb!)
Software:
FreeRTOS in each microcontroller with hand made polling, debounce and spi protocol between key and leds controller.
