Optical Properties Calculations

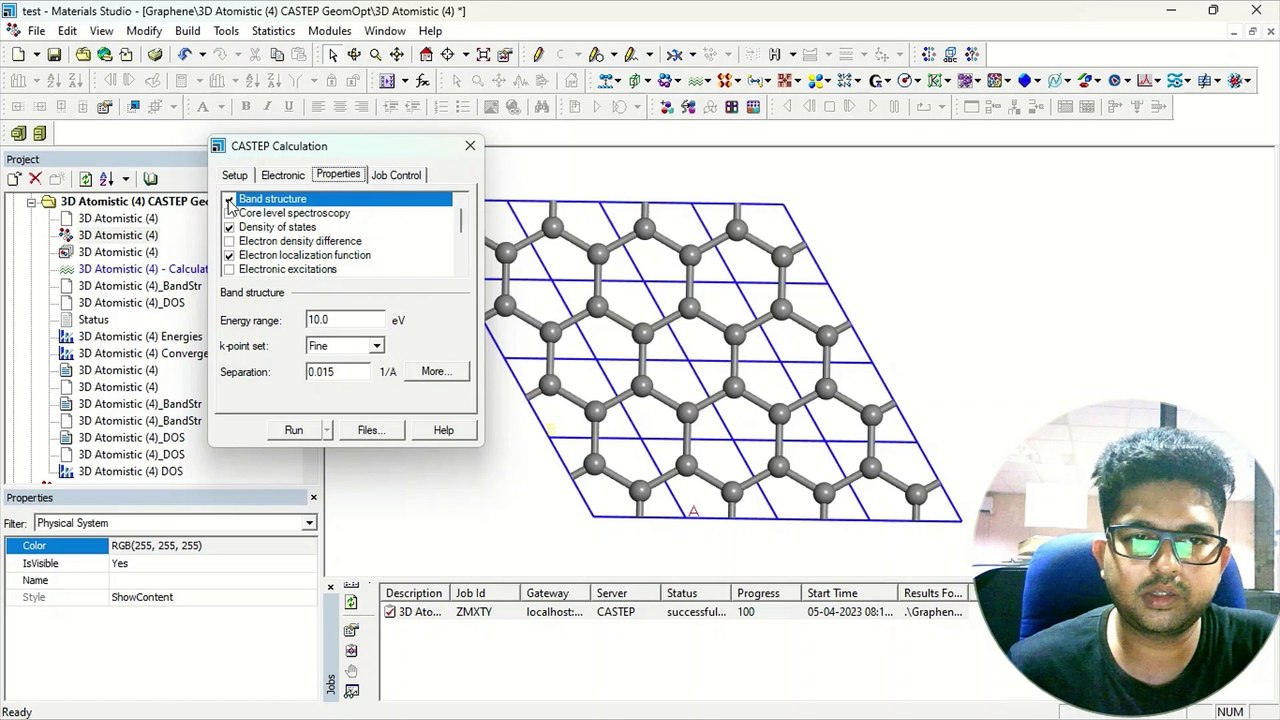

CASTEP is a program in Materials Studio that can be used to calculate optical properties of materials. Here are the general steps involved:

Set up the simulation: Start by creating a crystal structure for the material you want to study. This can be done using the "Build Crystal" or "Import Structure" options in Materials Studio. You will also need to define the simulation parameters, such as the energy cutoff and k-point sampling.

Perform the calculation: Run the CASTEP calculation to obtain the electronic structure of the material. You will need to specify the type of calculation you want to perform (e.g. DFT or TD-DFT), and the properties you want to calculate (e.g. band structure or dielectric function). Make sure to use appropriate convergence criteria to ensure the accuracy of the results.

Analyze the results: Once the calculation is complete, you can use Materials Studio tools to visualize and analyze the results. For example, you can plot the band structure or density of states to understand the electronic properties of the material. To calculate optical properties, you can use the "Optical Properties" module to calculate quantities such as the absorption spectrum, refractive index, or reflectivity.

Interpret the results: Finally, you will need to interpret the results of your calculations in the context of your research question. For example, you may want to understand how the electronic structure of the material affects its optical properties, or how different processing conditions affect the optical properties of a thin film. Materials Studio provides tools for visualizing and analyzing the results, but it is up to you to draw meaningful conclusions from them.
Optical properties refer to the way light interacts with matter. Some of the important optical properties include:

Absorption: The ability of a material to absorb light of a particular wavelength. The absorbed energy can be converted to heat or can excite electrons to higher energy levels.

Reflection: The ability of a material to reflect light incident upon its surface. The reflectivity of a material can vary with wavelength and angle of incidence.

Refraction: The bending of light as it passes through a material with a different refractive index. This can lead to phenomena such as lensing, dispersion, and total internal reflection.

Transmission: The ability of a material to allow light to pass through it. The amount of light transmitted can depend on the thickness of the material, the wavelength of the light, and the absorption and scattering properties of the material.

Scattering: The process by which light is redirected in different directions as it passes through a material. This can be due to the presence of particles or irregularities in the material, and can lead to phenomena such as diffraction and haze.

Polarization: The orientation of the electric field of light waves. Polarization can be linear, circular, or elliptical, and can be affected by the orientation an
