Network Dashboard Demo

Network Dashboard is a project for managing network devices, topologies, tests and running test cases. The network dashboards(inventory, topology and test) are all persisted in a database. If a device is deleted in inventory it is synchronized in topologies and tests as well.

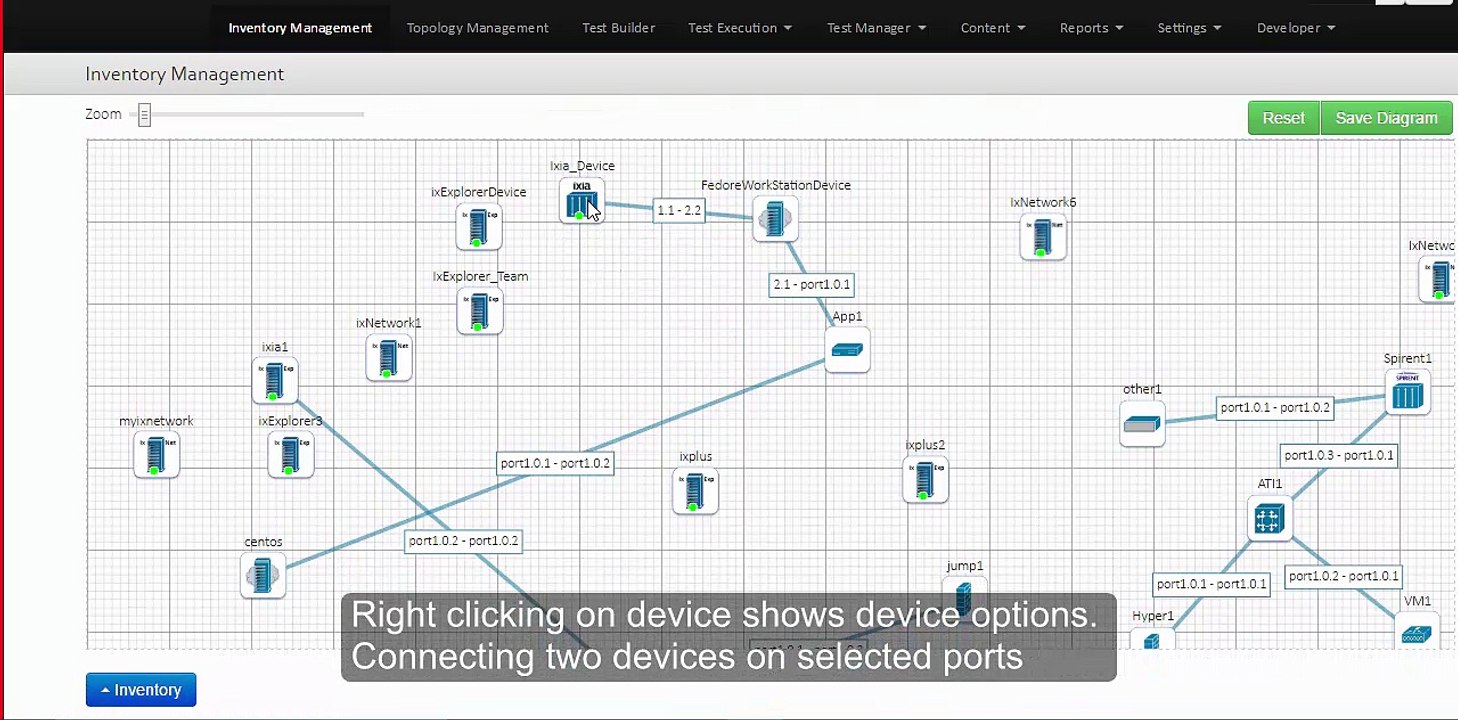

In Inventory Management you can manage physical network devices i.e switches, routers, firewall and servers etc. The device icons represent device states i.e on, off etc. Devices can connect with each other on available ports. Panning and zooming are some of the features of play area to focus on devices.
In topology management you can manage topologies by selecting devices and their links added in inventory management.
In test management you can manage tests for a topology.

Tools Used
Front End Technologies: D3.js, Bootstrap, JavaScript, jQuery, jQueryUI, SVG, JSON, HTML5, CSS3, LESS
Server Side Technologies: PHP, Bonfire, CodeIgniter, AWS EC2, Linux
BackEnd Technologies: MySQL

You can view the screenshots and detailed description at https://www.behance.net/gallery/41906725/Network-Dashboard and more projects at https://www.behance.net/nDataConsulting or http://www.nDataConsulting.com
