MCB Breakdown_ The Tiny Device Preventing Electrical Disasters πŸ”§

C
c3controls

0 Views β€’ May 30, 2026

Description

Have you ever wondered how a tiny device like a Miniature Circuit Breaker (MCB) keeps your entire electrical system safe from disasters? This comprehensive video from c3controls breaks down the internal mechanics and engineering of an MCB. You will learn exactly how this self-operated switch detects and responds to electrical faults to prevent fires and equipment damage.

The video explains the two primary ways an MCB protects your circuit:

Overload Protection: Learn how the bimetallic strip heats up and bends during moderate overcurrent conditions to activate the trip mechanism.

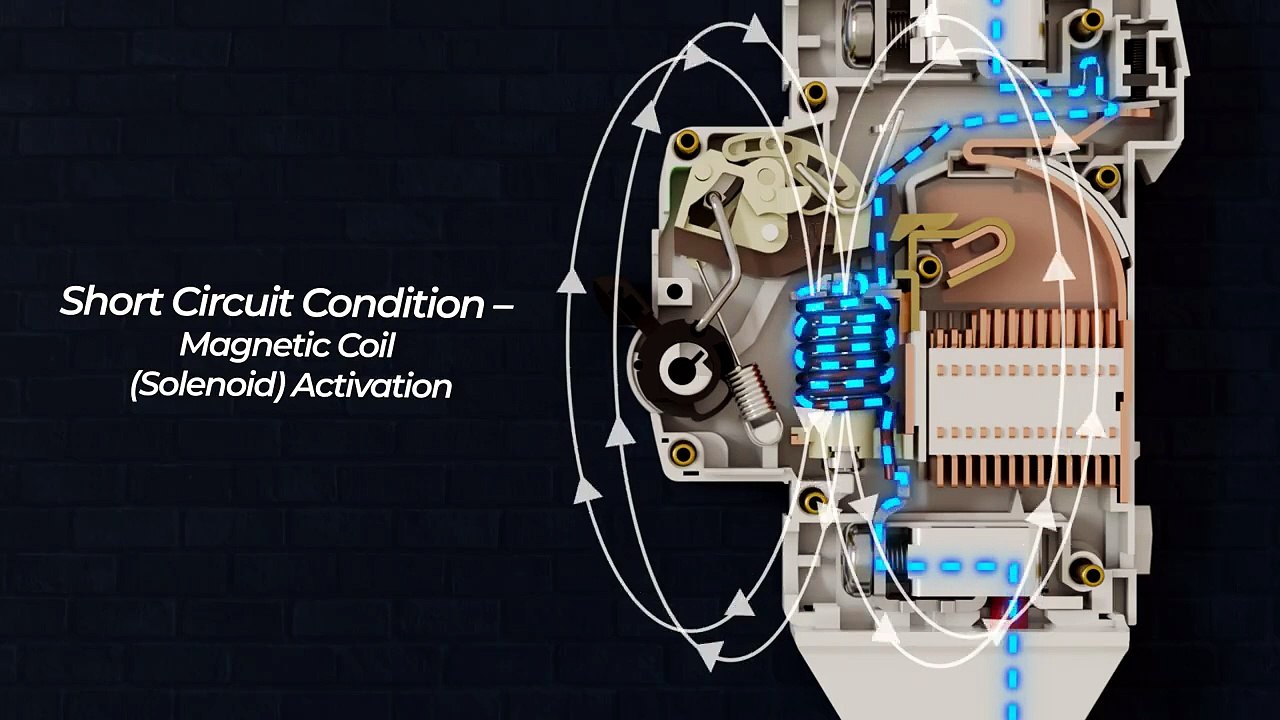

Short Circuit Protection: See how the electromagnetic solenoid coil reacts in microseconds to massive current surges, using a magnetic field to instantly open the circuit.

Arc Suppression: Discover the role of the arc chuteβ€”a specialized set of plates designed to capture, cool, and safely extinguish electrical arcs that form when contacts separate.

Whether you are an electrical engineer, an electrician, or just a curious DIYer, this 3-minute breakdown provides essential insights into the hardware that ensures electrical safety in every modern building. After a trip occurs, identifying the cause is key before manually resetting the breaker to restore power. For more technical deep dives, white papers, and detailed industrial insights, visit c3controls.com.
