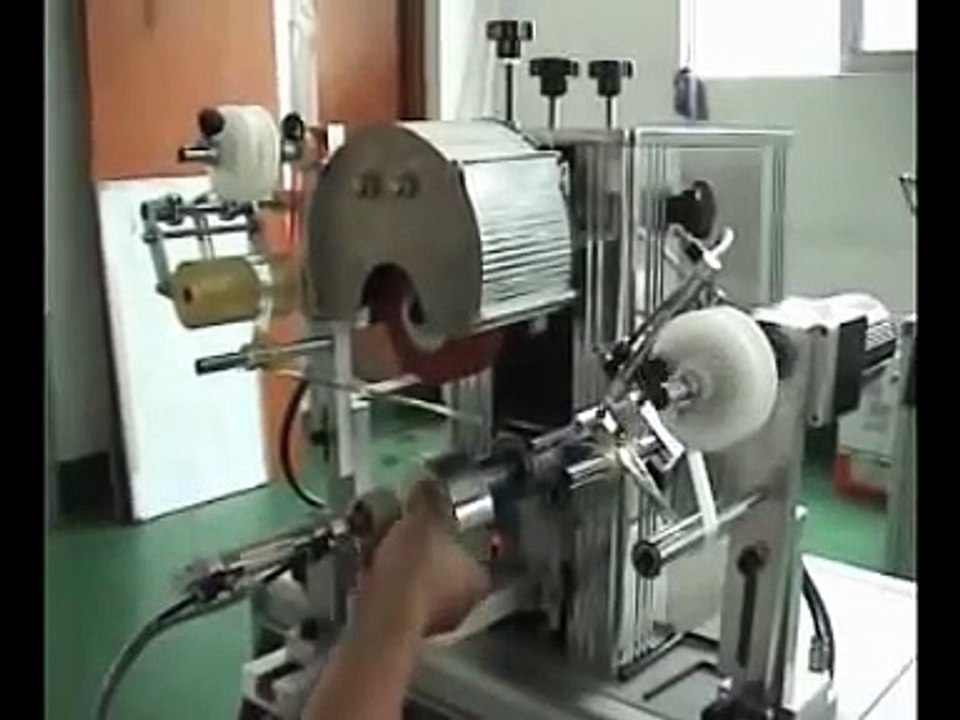

Irregular Shape Caps Hot Stamping Machine

http://www.printer-manufacture.com/Hot-Stamping-Machine-for-Irregular-Shape-Caps-p495.html

Application
This gilding press machine is applicable to stamp and form the contour lines on the abnormal bottle (irregular shape plastic) caps, featuring good mobility and uniform(round and oval, flat, tapered, multi-faced) and polished stamps with no joints on the outward curved surfaces or corners.
Features
1. Professional design, simple structure, easy adjustment, easy operation.
2. The flexible printing head and holding axis can be moved according to the shape of the objects, which allows the machine to print parts of various shapes such as round, flat, oval and multi-faced parts.
3. Nice printed quality: well-proportion, high shiny, no connection mark and low wastage rate.
4. SMC pneumatic parts, promise of goods quality.
5. Small size, nice shape, light and sturdy.
6 .The roller is adjustable back and forth, and can have a small angle from horizontal direction.
Machine Parameters
1: Power supply: AC220V/50Hz
2: Power Consumption: 640W
3: Air pressure: 4-6bar
4: Substrate diameter: Min. diameter 10mm , max. diameter 100mm
5: Printing width:0-20mm
6: Printing speed: 1200-3000pcs/h
7: Machine dimension: 600*500*1150mm
8: Heating mode: ceramic IR heating
9: Silicon Roller Size: 38*91 (inner dia.*outer dia.) Hardness: 90
9: Net/Gross Weight: 80kg/120kg
10: Packing Size: 900*800*1420mm
