Automatic Hot Stamping Machine for Caps Side Wall

http://www.printer-manufacture.com/Simple-Automatic-Hot-Stamping-Machine-For-Caps-Circle-Edge-p672.html

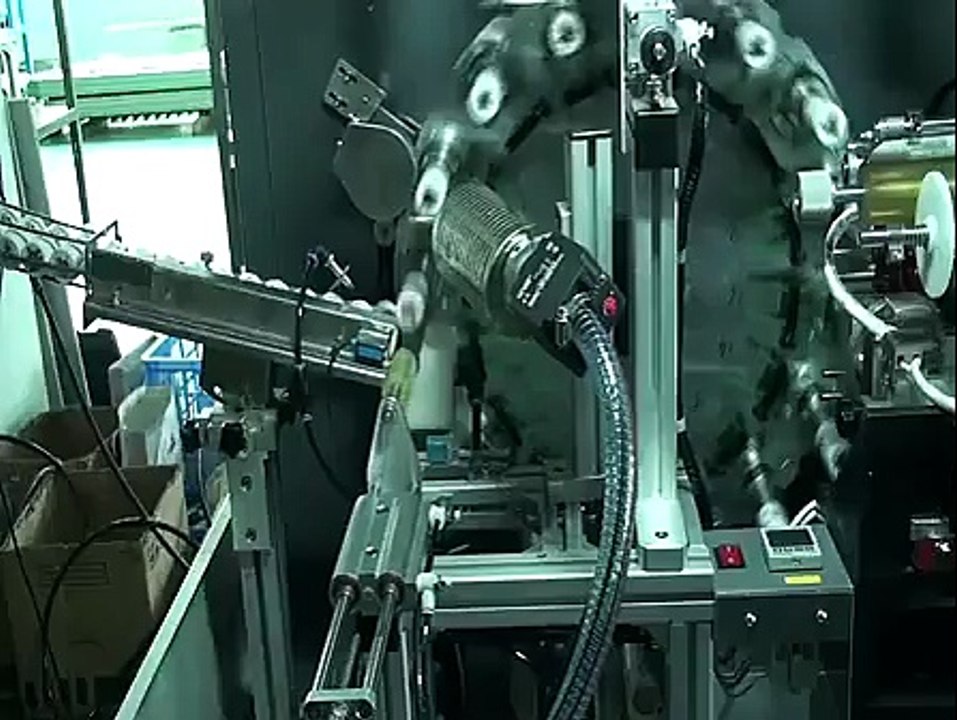

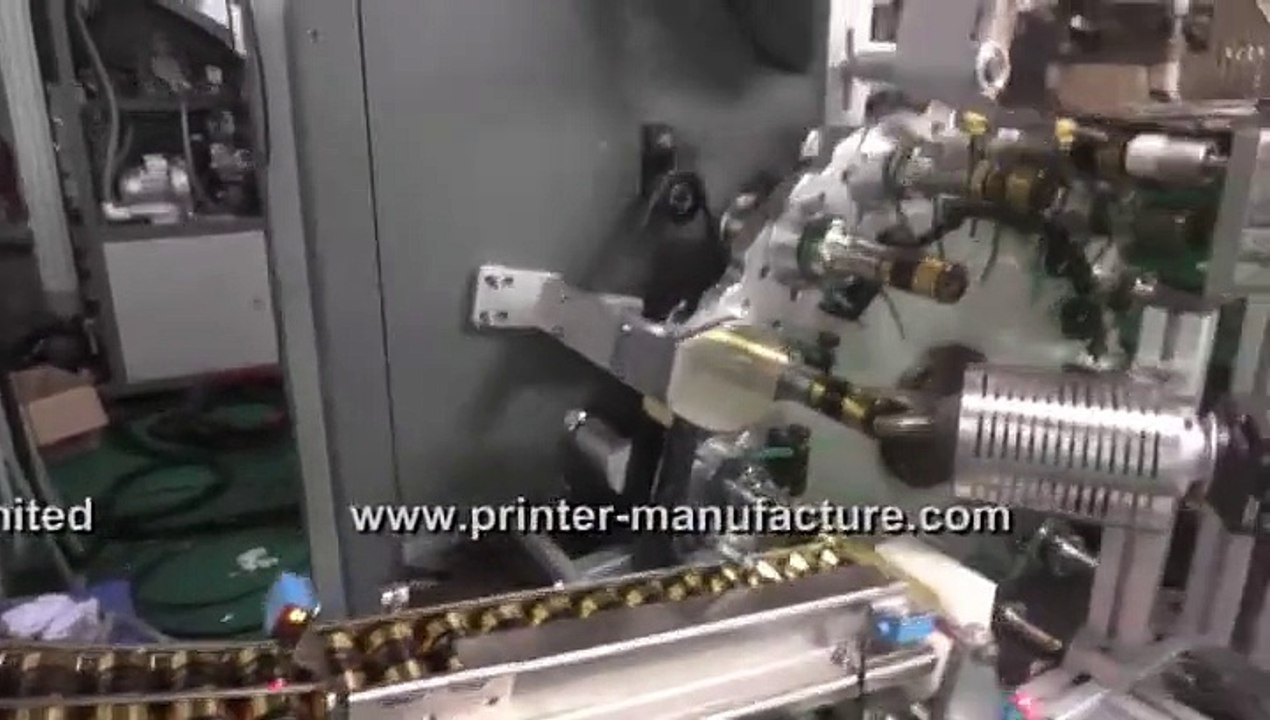

This automatic hot stamping machine is designed for Caps Circle Edge , simple , easy to operate , low cost and high work efficiency .
Specifications
1. Total consume Wattage: 260W;
2. Stamping temperature Rnange:20∼300℃;
3. Compress air Pressure:5－8Bbar;
4. Products Diameter:（φ15~Φ80mm）×（20~200mm）
5. Max stamping Speed:2000-3000pcs/hr
6. Outer dimension: 1500×1660×1200mm;
7. Net weight(kg) : 220
Advantages
1. Vertical Pression design and stabilization Pression;
2. Capable of adjusting the stamping pressure, the temperature and the speed;
3. Automatically counter available;
4. Automatic back-and-front worktable ensures safe and quick operation;
5. Worktable capable of slight adjustment of back-and-front, left-and-right and rotation;
6. Automatic foil feeding and rolling with adjustable function;
7. High precision sensor available for foils feeding, ensures good registration;
8. Safe protection device installed.
