How Does Momentary Controller Remote Control AC Motor

Momentary motor control (S1FM-AC220 & CV-2-2 ) for AC motor running in forward and backward.

•Connect live wire to terminal “L” and neutral wire to terminal “N”. Then connect AC motor to terminals “UP”, “COMMOM” and “DOWN”. You can exchange “UP” and “DOWN” wires of motor to change the rotating direction of motor.
•Press and hold button ▲ on remote or receiver: Terminals UP and COMMOM directly output AC110V / AC220V; motor rotates continuously in positive direction.
Release button ▲ on remote or receiver: Stop the motor.

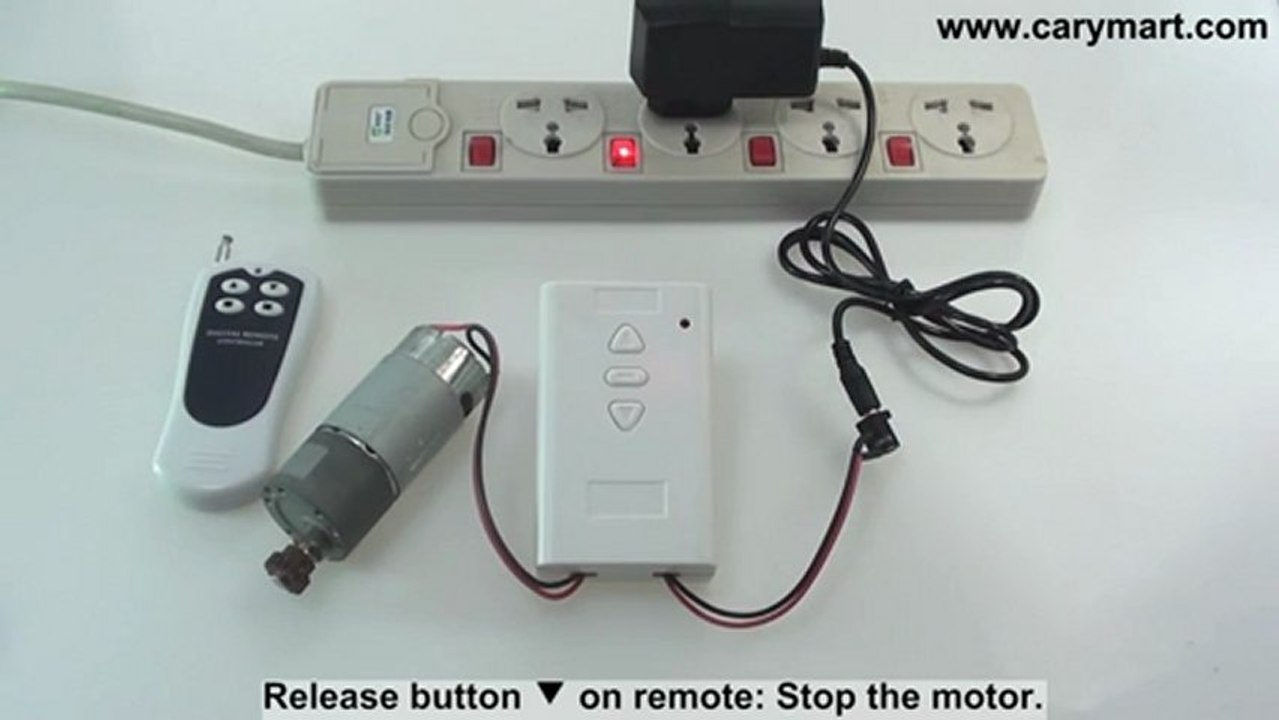

•Press and hold button ▼ on remote or receiver: Terminals DOWN and COMMOM directly output AC110V / AC220V; motor rotates continuously in reversal direction.
Release button ▼ on remote or receiver: Stop the motor
