Genelec G-Stencil / draw accurate speaker angles

G
Genelec-Oy

70 Views • Nov 13, 2012

Description

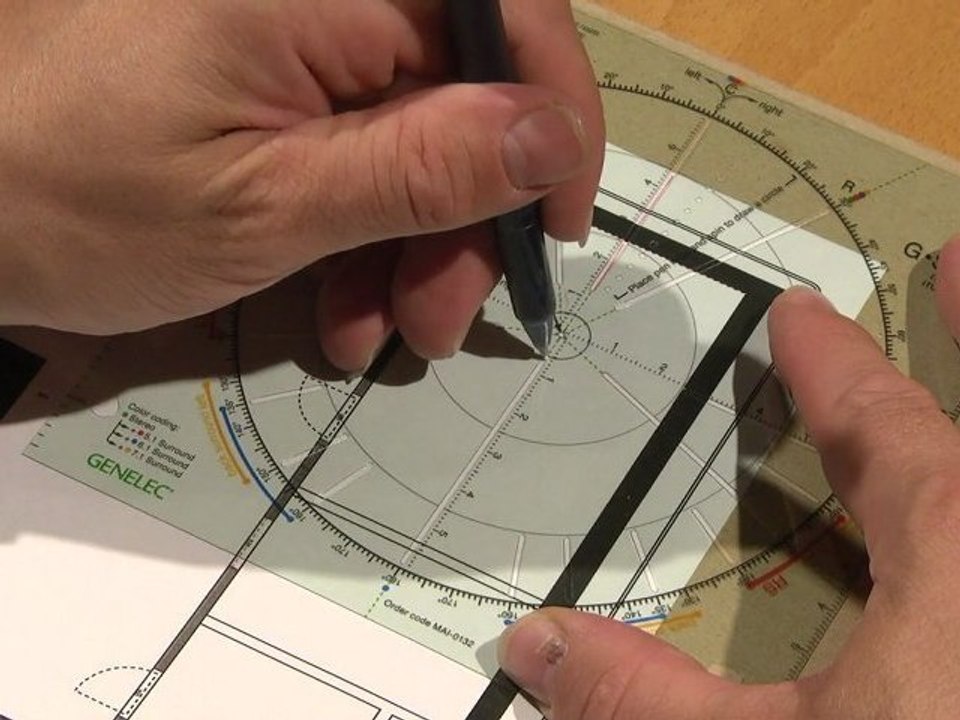

This tool has been created to help draw accurate speaker angles and distances on the plots and blueprints. It currently supports ITU Stereo and Surround standards among few others. White parts represent the cut-out grooves; punctures, product outlines, Genelec logo, monitor outlines and G-sign. There are measure scales for helping in the centering and alignment, punctures allow to draw a circle within 1mm radius.
