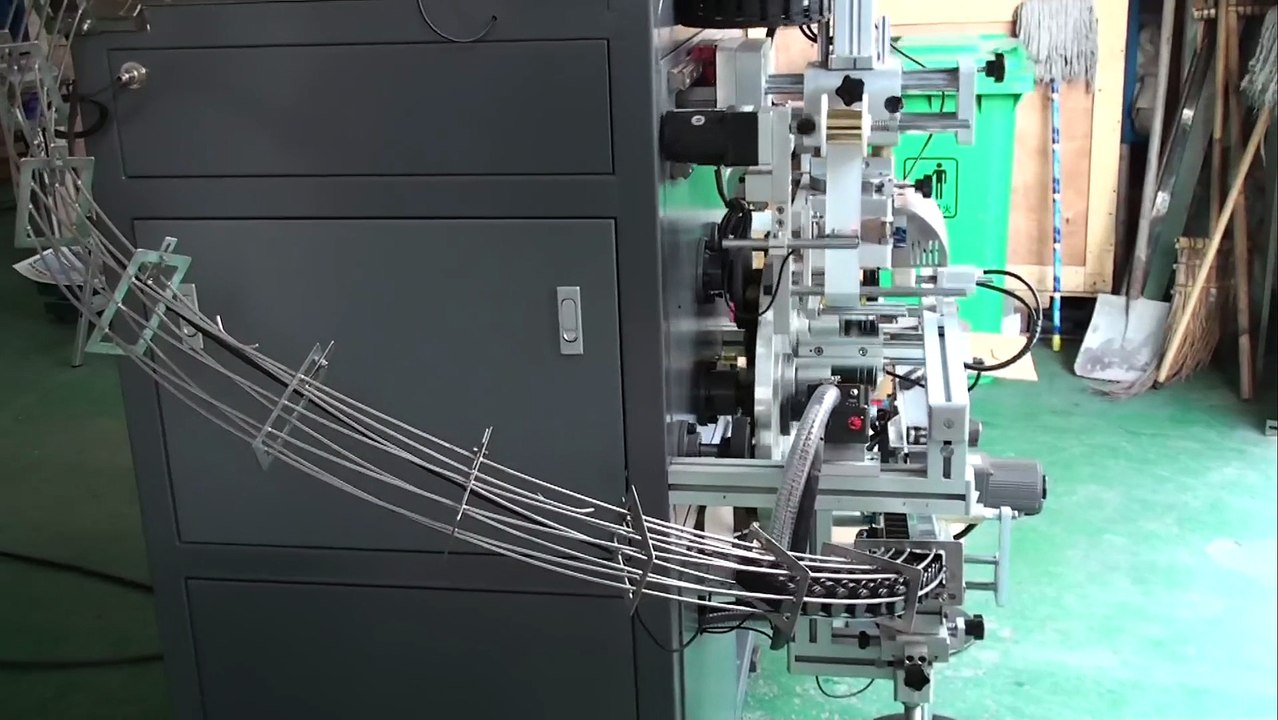

Automatic Caps Hot Stamping Machine

http://www.printer-manufacture.com/Automatic-cylinder-hot-stamping-machine-(-For-caps-circle-edges)--With-Eight-working-position-p260.html

Specifications
1. Total consume Wattage: 260W;
2. Stamping temperature Rnange:20∼300℃;
3. Compress air Pressure:5－8Bbar;
4. Products Diameter:（φ15~Φ80mm）×（20~200mm）
5. Max stamping Speed:3500-4500pcs/hr
6. Outer dimension: 2300×2160×1200mm;
7. Net weight(kg) : 220
Advantages
1. Vertical Pression design and stabilization Pression;
2. Capable of adjusting the stamping pressure, the temperature and the speed;
3. Automatically counter available;
4. Automatic back-and-front worktable ensures safe and quick operation;
5. Worktable capable of slight adjustment of back-and-front, left-and-right and rotation;
6. Automatic foil feeding and rolling with adjustable function;
7. High precision sensor available for foils feeding, ensures good registration;
8. Safe protection device installed。
Machine Fittings
1. Name card silicon plate 1 pc
2. High temperature paper1 inch;
3. Stamping foil 1 roller;
4. Tool box 1 case;
5. English struction 1 booklet.
Package List
1. Package list:2350×2210×1280mm;
2. Gross weight: 260kg
Product Description

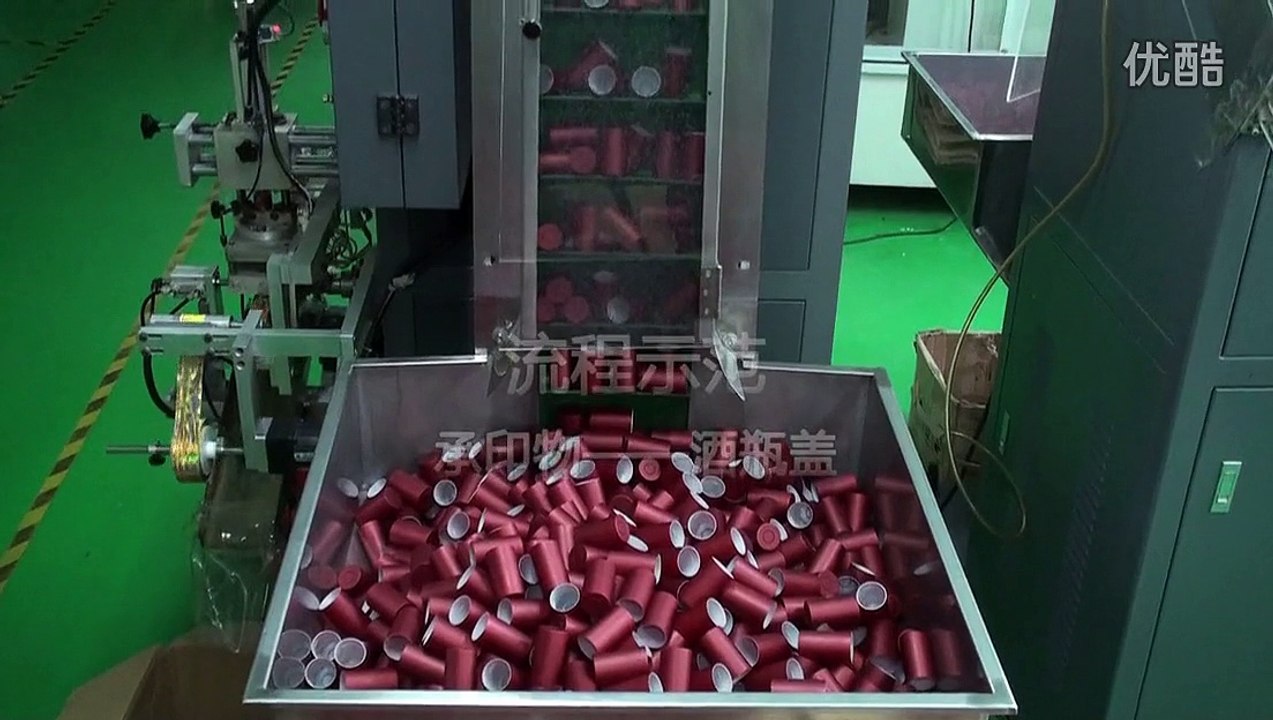

Designed for Plastics caps stamping Process; High stamping speed; Automatic tranport, automatic choose up and down of caps; Automatic stamping ；Suitable for large batch cylinder products such as caps, cosmetic case, etc.
The difference between one working position and eight working position is that eight working position are greatly improve the hot stamping working capacity compare with only one working position.
