W10

Product Description:
Filling and packaging machine Brand W-10 (Weighing System)

Technical Specifications:

-Production capacity :40-60 pack\min
-Pack length control 10-32 cm
Cushion design envelope-
-Action of gates system multi-speed drive to fits with the type of the
Producer
-Test system for all movements of scale
-All the parts that on touch with the product is made of 304 stainless steel

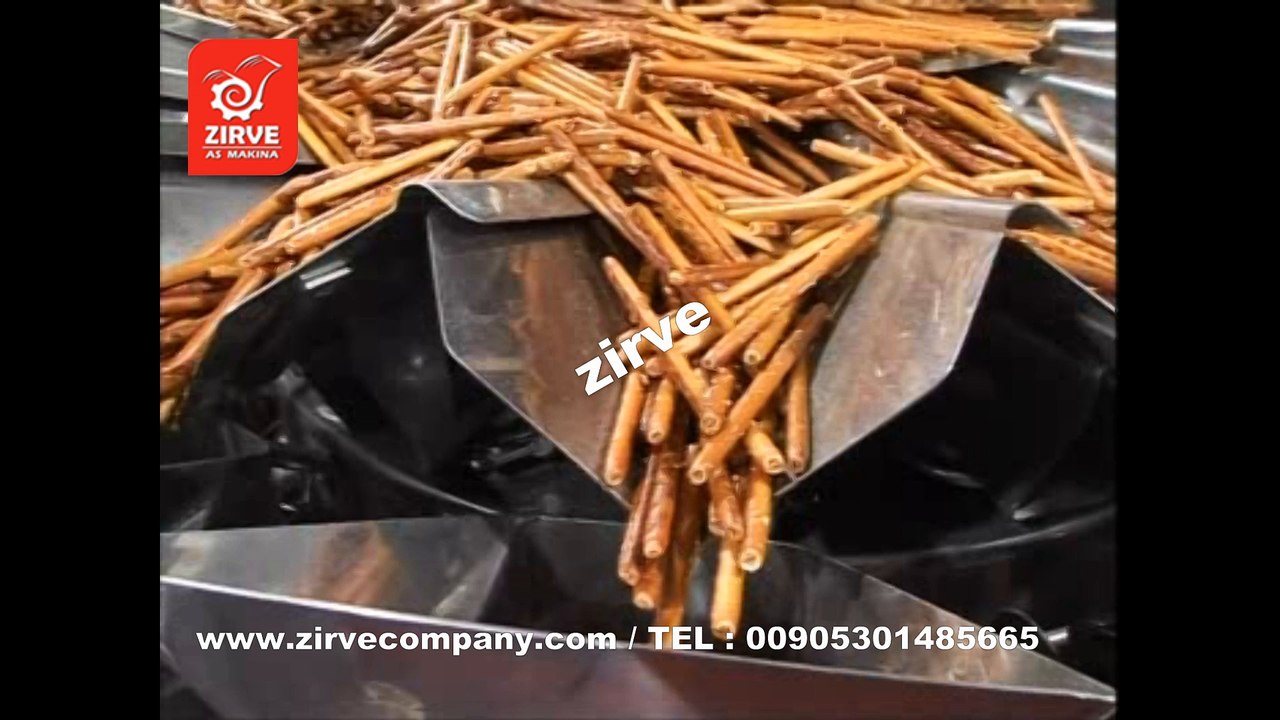

-Weighting filling system with 10 weighting heads(Intelligent Gates Collector)
Programming easy calibration system-
Easy to install and remove-
Reset system-
weight tower waterproof to wash and clean easily -
- Tank filler is equipped with automatic feed system
- Faber glass doors for safety
-Facility with scale spare parts (weight sensors - gaskets waterproof-gate engine sensor)
-Circular Centre feeder–10 Horizontal Vibration Lines–10 Central Cuffs–10 Weight Cuffs
-Filling Weight : 1-1000 g with High-accuracy
-Control panel touch screen from LS (Korean Brand) with 4 languages
-PLC control system from LS high-responding and can be updated on the internet
ability to save 99 program -
-All pneumatic parts is from FIESTO company (Germany) and SMC (Japan)
-Temperature hour with accuracy control system brand AUTONICS - Korea
-Inverter for speed control LS brand
-All electronic parts from Schneider company (France)
-The machine works encapsulates all thermal rolls except polyethylene
-All gear position squaring centresfor non-corrosion made of 304 stainless steel to be able to work continuous 24 hours
-Pneumatic system with pressure 7 to 8 bar and capacity 300 L/min
-Equipped with 4 Motors with 3/4 hp (Italy) with 4 gear boxes (Italy)
-Power Requirement: 380 V 50 hz 5.5 kw full automatic
-Dimension : 380X210X240 cm

Alternative Equipments:
PVC Conveyor belt line with Tank, Vibrator, and circuit control and electronic sensors to feed the machine with the product automatically
Front Conveyor beltto receive packages
Tools box (Heaters + thermostat + Weight Cable


All machines manufactured in our company holds the international quality certificate ISO 9001. ISO 14001. ISO 18001
All machines manufactured in our company holds a certificate of CE
