VxLAN | Part 4 - Address Learning

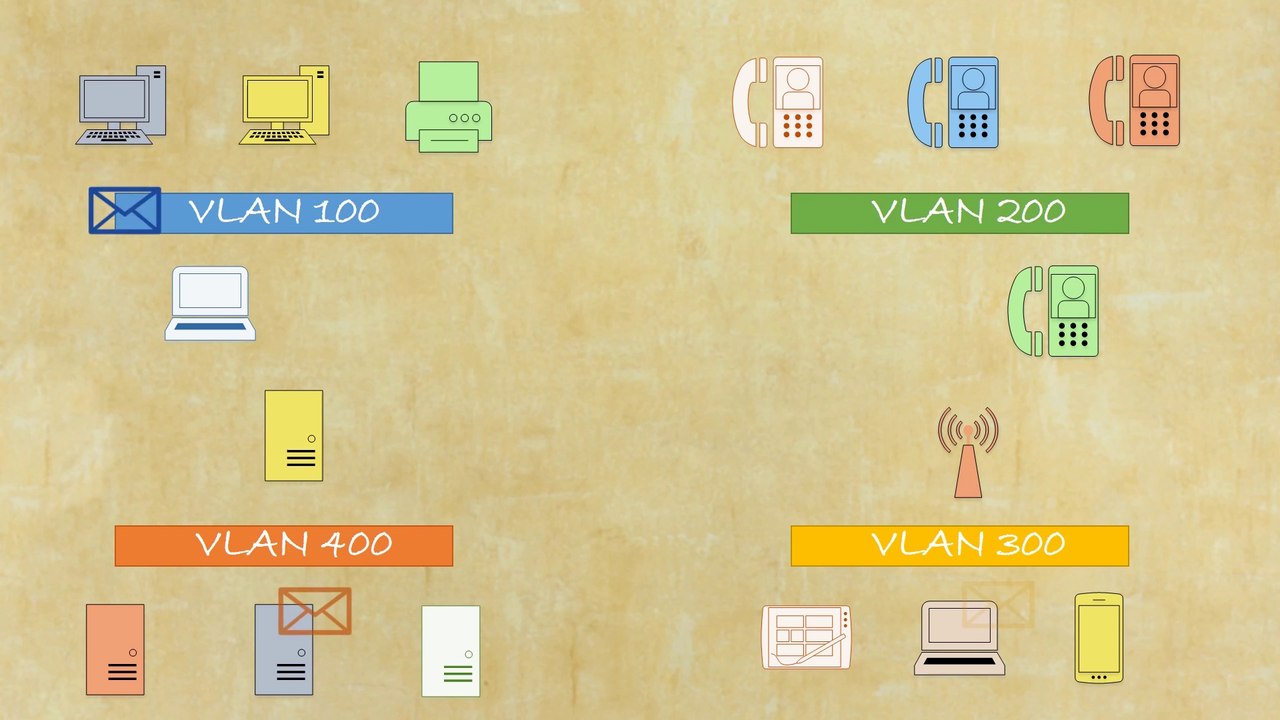

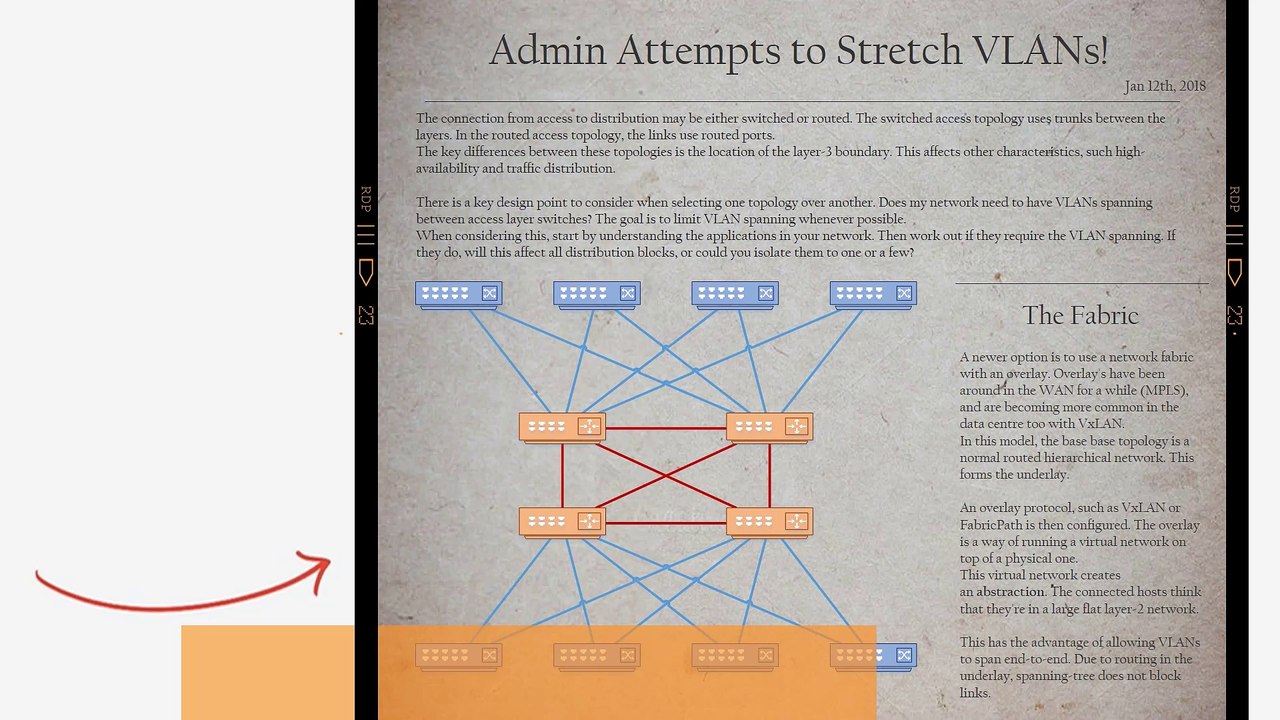

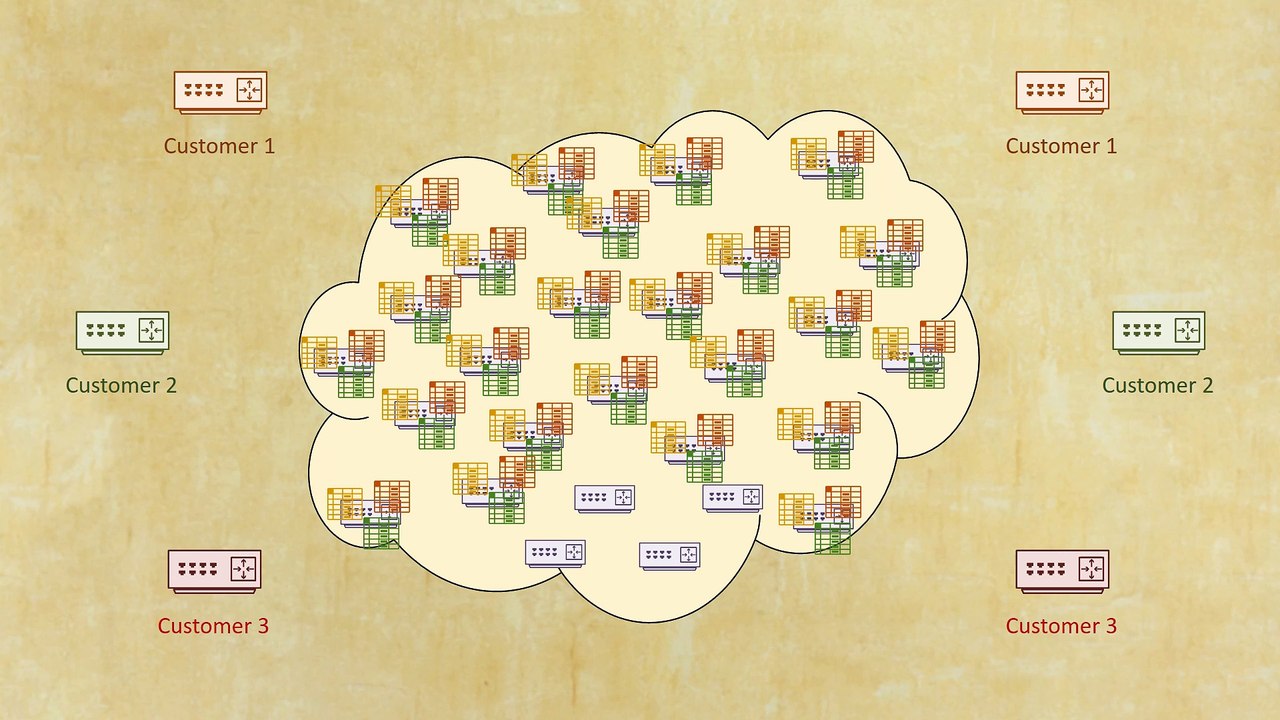

You know that VTEPs encapsulate traffic in VNI’s, to send over an overlay network tunnel. But how does the sending VTEP find the destination VTEP? How are MAC to IP bindings learned?

Let’s start with how Broadcast, Unknown Unicast, and Multicast (BUM) traffic are handled. The two methods are multicast groups and head end (or ingress) replication.

VNI’s can be mapped to multicast groups. When BUM traffic is sent, it will be sent to the group, rather than everywhere. When VTEPs start, they use IGMP to join the correct groups.

With head end replication, the frame is duplicated and sent to each relevant VTEP. This does not scale as well as multicast.

There are two ways to learn about MAC addresses as well. The first is flood-and-learn (AKA data plane learning), which acts like ethernet.

The other is control plane learning, which uses BGP #EVPN to learn MAC addresses before they are needed. This is like learning routes.

#VxLAN address learning Explained! In this video we’ll look at bridging vs routing, head end replication, multicast, and take a deep dive into how control plane and data plane learning work.
