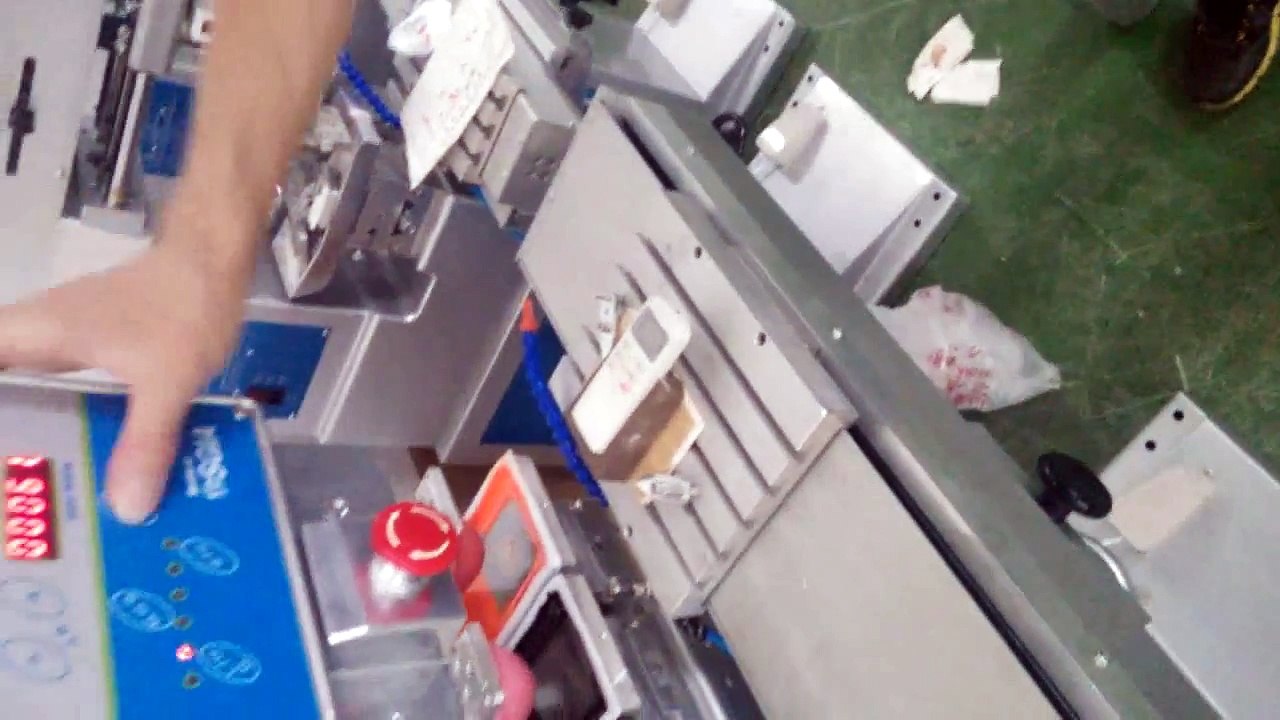

Two Color Pad Printing Machine for Remote Control

Company:EC Printing Machine Factory Limited
http://www.printer-manufacture.com/2-color-Pad-Printer-With-Shuttle-p375.html

Two-color printing machine was a shuttle to complete the two chromatic models a single product, the shuttle
table chromatic precision, does not take place to save operating procedures, work efficiency increased. Two
color printing machine that doubles as a shuttle color printing machine, color printing machine with double
headed, single-color printing machine is an enhanced version.
Feature:
1. Advanced computerized system control
2. Pneumatically driven adopt from FESTO, can adjust the movement speed of each part
3. Built-in LED digital counter
4. Emergency stop system to ensure the safety of operator
5. Light-weight, strong aluminum cast machine frame
6. Ink trays, work table and pads are independently adjustable for easy color registration
7. Speed, pad and printing stroke are easily adjustable for different printing requirements
8. Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning
LC-PM2-100
Specifications：
Operation：Semi-Automatic
No. of color：2 color
Working station：1Pcs
Working table area：165×165 mm
Standard plate area：100×100mm
Max printing speed：1300 Pcs/Hr
Power voltage：220V/50Hz
Power consumption：35 W
Air pressure：6 Bar
Air consumption：110 Liter/Min
Machine dimension：860×460×1400 mm
Machine weight：103Kg
LC-PM2-150
Specifications：
Operation：Semi-Automatic
No. of color：2 color
Working station：1Pcs
Working table area: 165×165 mm
Stander plate area：100×150mm
Max printing speed：1300 Pcs/Hr
Power voltage：220V/50Hz
Power consumption：35 W
Air pressure：6 Bar
Air consumption：110 Liter/Min
Machine dimension：880×460×1400 mm
Machine weight：107Kg
LC-PM2-150L
Specifications：
Operation：Semi-Automatic
No. of color：2 color
Working station：1Pcs
Working table area: 165×165 mm
Stander plate area：150×150mm
Max printing speed：1200 Pcs/Hr
Power voltage：220V/50Hz
Power consumption：35 W
Air pressure：6 Bar
Air consumption：110 Liter/Min
Machine dimension：880×460×1400 mm
Machine weight：110Kg
LC-PM2-200
Specifications：
Operation：Semi-Automatic
No. of color：2 color
Working station：1Pcs
Working table area: 165×165 mm
Stander plate area：100×200mm
Max printing speed：900 Pcs/Hr
Power voltage：220V/50Hz
Power consumption：35 W
Air pressure：6 Bar
Air consumption：110 Liter/Min
Machine dimension：960×460×1400 mm
Machine weight：120Kg
