The Ultimate Tool -RT809H BIOS Programmer-Unbox and Test

RT809H Programmer Working Process.

Description:

· High programming speed.

· ISP connector for in-circuit programming.

· Advanced and powerful software functions.

· Can support any flash and very easy to add new flash.

· 48-pins powerful pindrivers, no adapter required for any DIL devices.

· VGA port to read and write LCD TV-MONITORS without disassembly.

· HDMI port to read and write LCD TV-MONITORS without disassembly.

· Connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface.

· Comfortable and easy to use control program, works with all versions of MS Windows.

· Provides very competitive price coupled with excellent hardware design for reliable programming.

· These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.

· The selftest capability allow to run diagnostic part of software to thoroughly check the health of the programmer.

· Support Auto select for any series of flash including TSOP48-NAND-EMMC-PLCC,ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.

· All known data formats are supported. Automatic file format detection and conversion during loading of file.

· The software also provide a special information about programmed device. As a special, the drawings of all available packages are provided.

· The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.

- Support UPTO 64GB NAND FLASH.

- Support Read and Programming OTP area.

- Full Support LCD TV FLASH drivers read and write unlimited capacity TSOP48 nand FLASH EMMC TSOP56 pin TOP8-16 pin Support CAR DVD, SMART TV.

- The Only universal programmer which can automatically detect chip number for all Chips.

- The only universal programmer which can put ic in any position and make intelligent sense.

- The Only universal programmer Support Read and program Laptop I/O via keyboard line.

- The Only universal programmer Support Read and Program LCD TV VIA VGA and HDMI PORT.

- The Only universal programmer Support ADD new flash by yourself without wait for factory.

- The Only universal programmer built in Most of repair applications TV,DVD,DVB,and many isp software.

- The Only universal programmer make selftest for LCD TV itself and diagnostic fault.

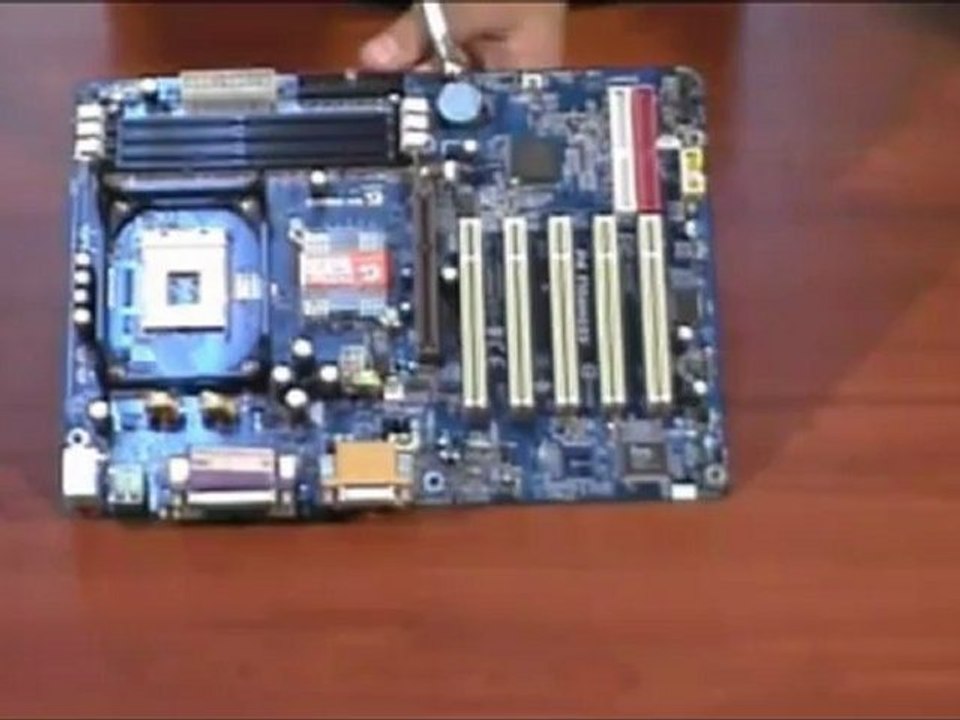

- The best programmer to read and programing flash on motherboard without removing out.
