TAPPED SHANK CLIP NUTS "NUT"

L
LISI AUTOMOTIVE

2 Views • May 26, 2014

Description

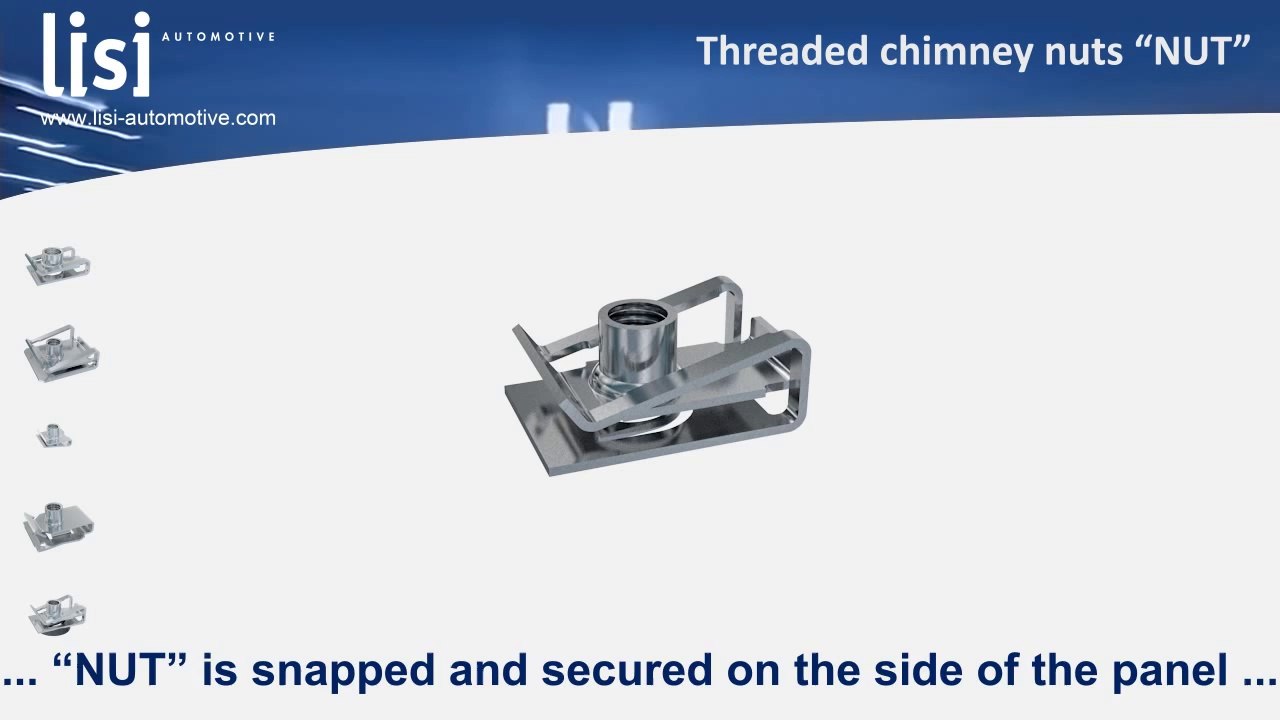

The tapped shank clip nut "NUT" is used for screwed assembly into panel edges. The screwing is carried out in a stamped and threaded shank (chimney) put into the piece (tapping M5, M6, M8).

The tapped shank clip nut "NUT", made from a metal strip, has the general shape of an "U" and comprises a threaded shaft shaped on one of its branches. It is assembled by pinching it on the edge of the panel, in a round hole where it is catched.
