Rotule panorama photo
426 Views • Nov 11, 2009
Description
La rotation est indexée par une bille (pas de 20°).

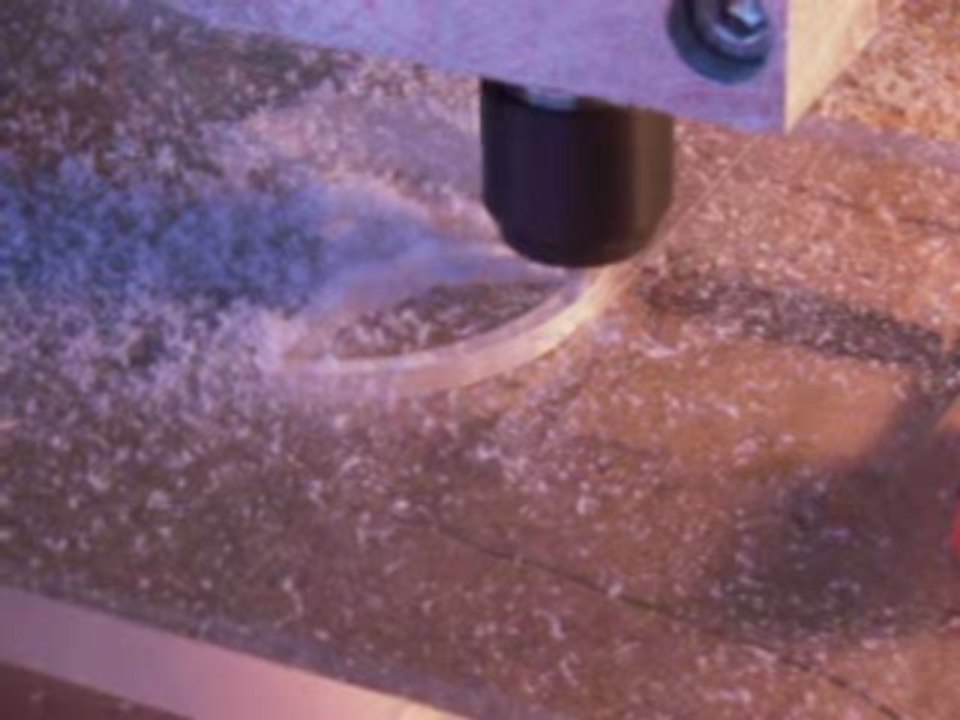

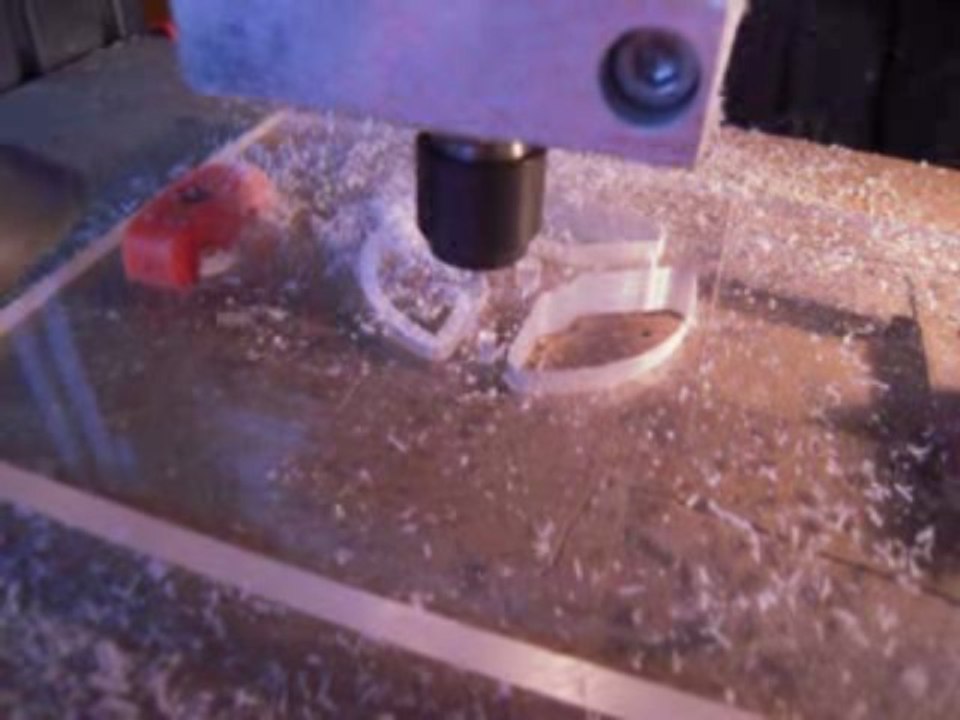

J'ai usiné ce proto dans du plexiglass. Il est composé de 3 pièces : une embase, un support roulement et un rotor.
Le temps d'usinage est de l'ordre de 15 minutes, pas de difficulté particulière.
