Phase Sequence Checker for 3 Phase Supply | General Electronics Projects

T
Tarun Agarwal

202 Views • Apr 15, 2013

Description

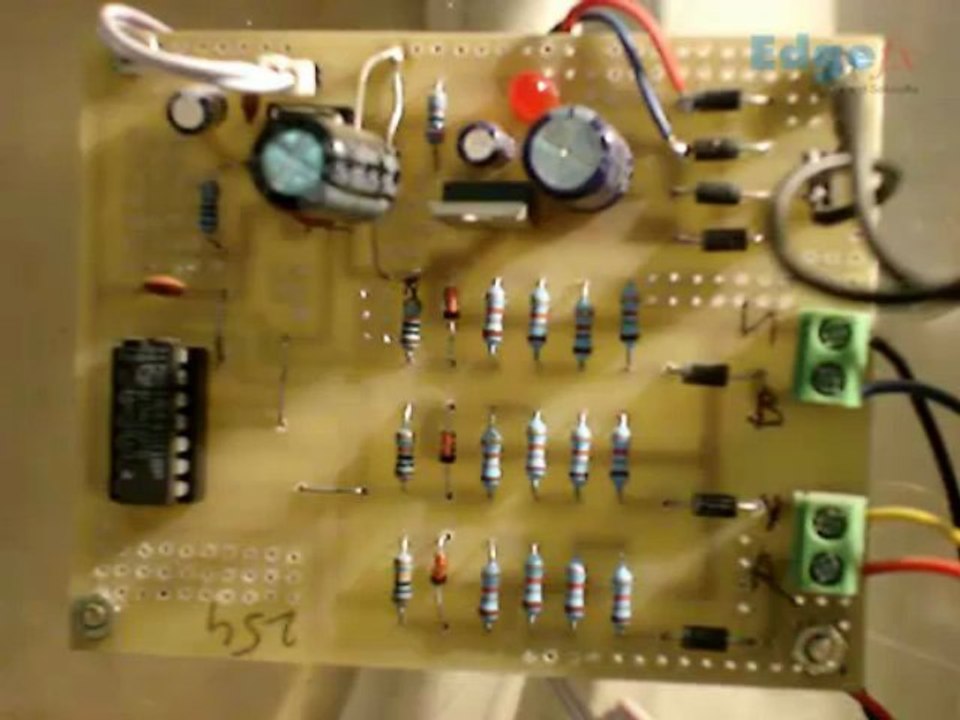

Model No. 254: This project is designed to check the sequence of the 3 phase supply. In this project direct 3-phase AC supply 50Hz is fed through voltage drop arrangement duly stabilized by zener diodes to a logic circuit comprising of NAND gates and OR gates to detect the proper sequence of RYB by series of pulses of fixed duration.
For more information about this project, kindly visit http://www.edgefxkits.com/phase-sequence-checker-for-three-phase-supply
