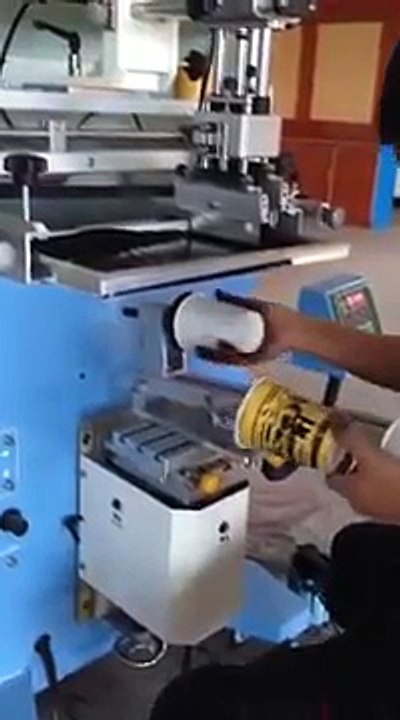

Paper cup screen printer machine

http://www.printer-manufacture.com/Flat-and-Curved-Universal-Screen-Printer-p390.html

Suitable for printing on the surface of cylindrical, conical and oval object; such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell etc, the materials that is made of metal, plastic, ceramic, glass, wood, and so on. With
the perfect design and innovation technology, ensure the fast printing speed and good printing quality。
Feature:
1. Advanced fully automatic computerized system control,easy handing .
2. Built-in four figures automatic LED digital counter
3. Suitable for printing on round, cylindrical, oval or flat project
4. Light-weight, strong aluminum cast machine frame, Adujustability of routs and speeds
5. Automatic oil scrabbing, oil return and lifting table
6. Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
7. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
8. Net frame work table can be adjusted around emblem, tone down logo, printing, high precision, easy to adjust ,quick.
9. Adopt German FESTO components,Main Parts FESTO cylinde made by Geramny
Specifications:
1. Thickness of printing matter: 0-350 mm
2. Product appearance: Round /oblate /flat
3. Round Max. Printing diameter: 120mm
4. Round Max printing arc length: L: 370mm
5. Oblate Max printing diameter: 500mm
6.Flat Max printing area: 320 x 220mm
7. Max gradient for Work piece: less 14°
8. Air pressure:6 Bar
9. Air consumption:500 Liter / Min
10. Power voltage: 220V/110V 60/50Hz
11. Power consumption:50 W
12. Machine dimension:1080×850×1280mm
13. Machine weigh: 145Kg
