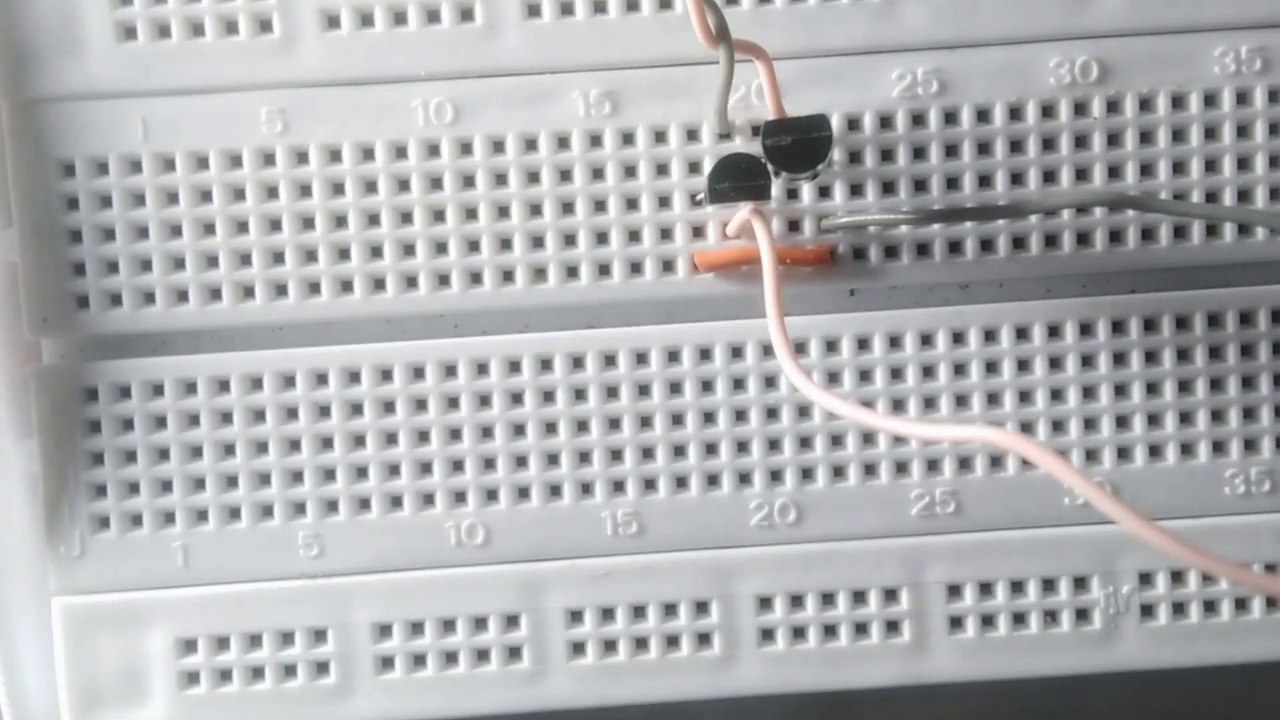

melody bell using IC UM66

Dear viewers you are watching mhb channel on dailymotion. It is Technology education channel .
Title for todays video is " DIY Simple Bell with IC UM66 - 2-Component Construction!

Description:

In this tutorial, we'll guide you through the step-by-step process of creating a basic and efficient bell using the IC UM66. The beauty of this project lies in its simplicity, as it operates on a mere 3V power supply(very low) and requires only two components, with the optional addition of a 470-ohm biasing resistor for enhanced performance.

Components Needed:

IC UM66
Optional: 470-ohm Biasing Resistor
️ Construction Steps:

1️⃣ Gathering Components:

Acquire the IC UM66 and, if desired, a 470-ohm resistor for biasing.
2️⃣ Understanding IC UM66:

The IC UM66 is a melody generator IC that comes pre-loaded with various tunes. For our bell, we'll leverage its simplicity and ease of use.
3️⃣ Connecting the Components:

Connect the IC UM66 to the 3V power supply. If using the optional resistor, connect it in series with the power supply for biasing.
4️⃣ Testing the Bell:

Power up the circuit and witness the IC UM66 producing a delightful bell sound. The optional biasing resistor can help fine-tune the performance.
5️⃣ Customization (Optional):

Feel free to experiment with different melodies or add a switch for toggling between tunes.
Congratulations! You've successfully created a simple bell using the IC UM66 with just two components. This project is perfect for beginners and electronics enthusiasts looking for a quick and enjoyable experiment.

Don't forget to like, share, and subscribe for more exciting DIY electronics projects! If you have any questions or want to share your experience, drop a comment below. Happy tinkering!
