Make Emergency Light DIY-Circuit!

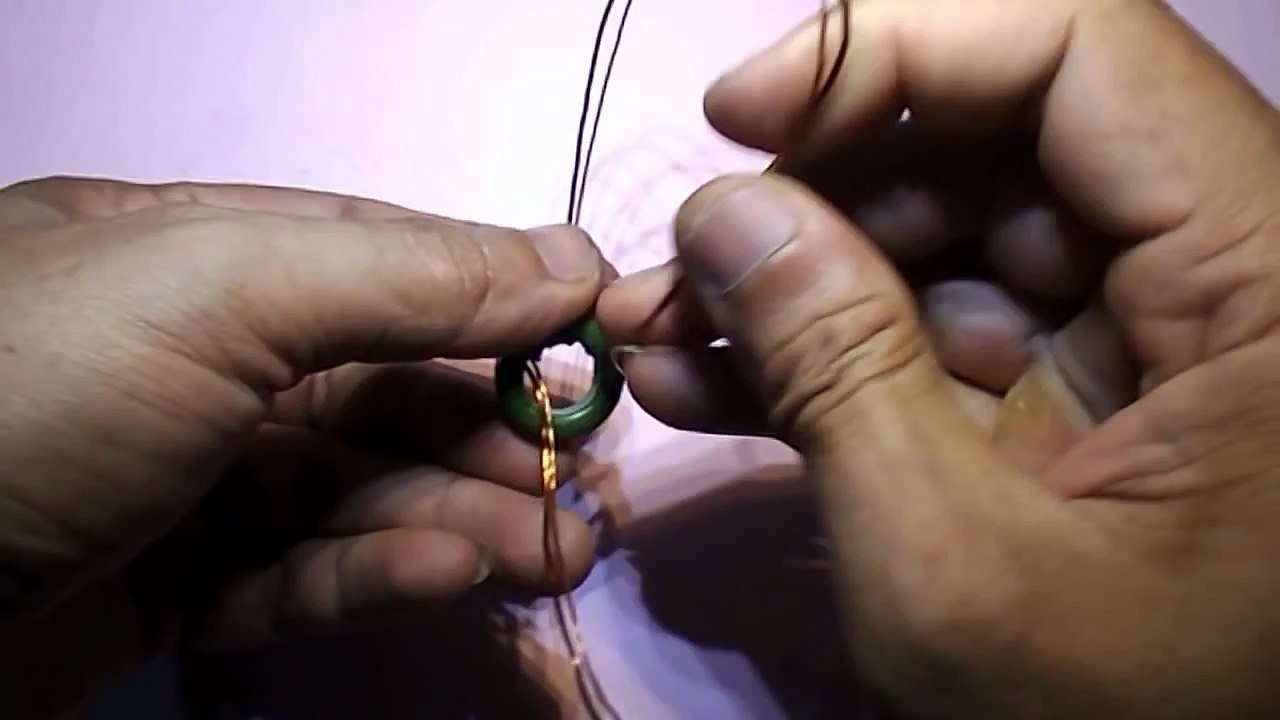

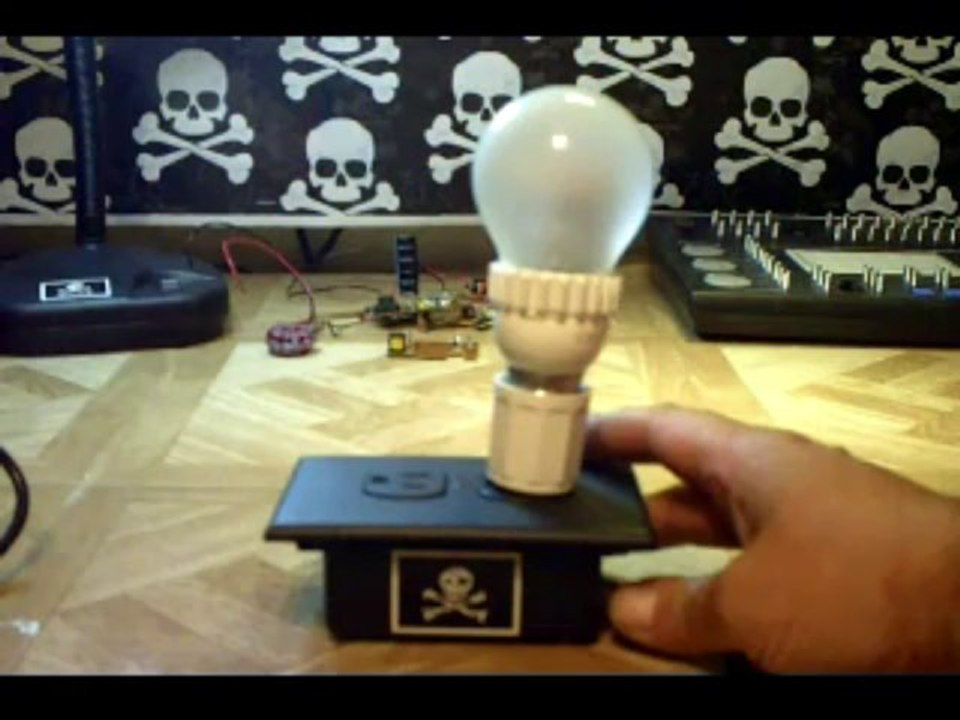

A very simple inverter circuit and How to Make a Toroid Transformer. This Efficient joule thief can take as little voltage 0.7V or 1.5v AA Battery to Boost Set Up AC or pulsed DC to turn on 120v or 220v small current 1.5w to 3 watt LED Bulbs can be achieved. Yes! to steal all the last energy from a little battery.\r
\r
If you like my Demonstration-Experiment click the like Button. SUBSCRIBE► SHARE with your Friends. Feel free to post your Positive or Negative comment! SUPPORT my work DONATE for materials & equipments - Magnets & Magnet Wires, Lab TOOLS & any other building supplies, variable Power Supply ect. This would HELP my Research. Stay Tuned and Enjoy! God Bless Thanks-ELEMAN.\r
\r
What is a Joule Thief? Is a minimalist Armstrong self-oscillating voltage booster that is small, low-cost, and easy to build, typically used for driving light loads.\r
It can use nearly all of the energy in a single-cell electric battery, even far below the voltage where other circuits consider the battery fully discharged; hence the name, which suggests the notion that the circuit is stealing energy or joules from the source. The term is a pun on the expression jewel thief: one who steals jewelry or gemstones.\r
The circuit is a variant of the blocking oscillator that forms an unregulated voltage boost converter. The output voltage is increased at the expense of higher current draw on the input, but the integrated current of the output is lowered and brightness of a luminescence decreased.\r
