LC175-2016

Corn chips production line with all accessories Brand LC 175
Technical Specifications:

Corn vertical mixer size 300 kg made of 304 stainless steel and 2 mm thickness
3 hp drive motor brand Italian
Equipped with mechanical safety
Electrical safety to stop working during cleaning and maintenance
Dashboard for control
Water tank for hydration with a level indicator.
Magnetized metal grille Installed in the hopper for screening of ferrous objects


Extruder made of thermal coated iron and covered with 2 mm 304 stainless steel with production capacity: 175 kg/h
Extruder Motor 50 hp brand Italian
Inverter to control engine speed electronically brand LS -Korea
Multi-speed knife to control of chips pieces length with inverter brand -LS -Korea
Heater device controlled electronically brand AUTONICS - Korea

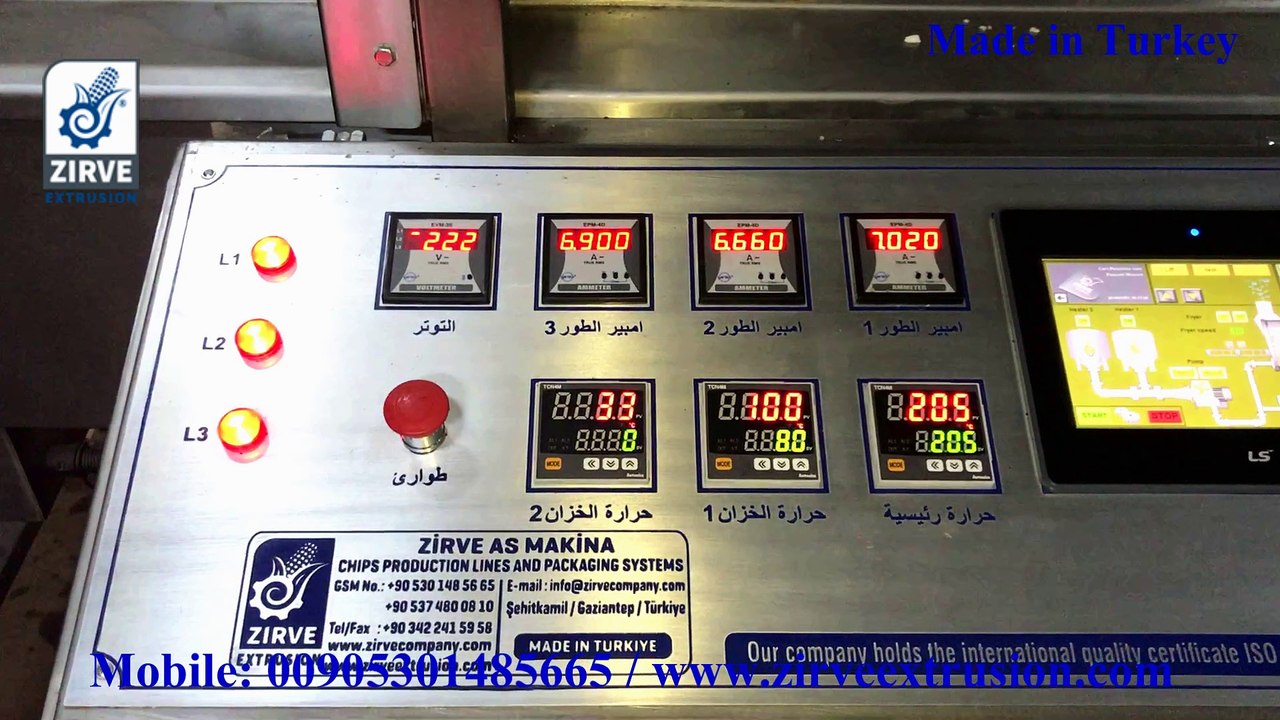

Independent dashboard(external structure of the extruder) equipped with Ventilation s and filters brand SCHNEIDER-France and LS –Korea


Material transfer device from the bottom of the extruder to the roaster made of 304 stainless steel
Provider with a drum to carry the materials to the toaster
Easy to install and clean

Roaster
Circular cylinder made of 304 stainless steel and heatproof layer temperature electronically
controlled by inverter
Roasted speeds controlled electronically (inverter)
Motor 1 hp brand Italian
Roasted covered by two layers of stainless steel with thermal insulator between it

Flavor device
Circular cylinder made of 304 stainless steel
Speed control inverter
Flavor pump controller
Flavor spray (American design) with inverter
Wheeled legs to easy moving

Oil and flavor mixer size 170 L made of stainless steel
With heaters and dashboard for control with inverters and ventilators brand SCHNEIDER-France and LS-Korea
Double jacket for worming equipped with motors and gear boxes
High-accuracy temperature hour brand AUTONICS-Korea
provider with thermometer for hot water temperature in Mixers
mixing time controlled Automatically

flavor Pump
Ankernag engine is connected with a pump with a Silicon hose
pump speed controlled by electronic / engine brand YILMAZ Turkish

Templates for various forms

heaters

Hydraulic piston

Tools box

All machines manufactured in our company holds the international quality certificate ISO 9001. ISO 14001. ISO1 8001
All machines manufactured in our company holds a certificate of CE
