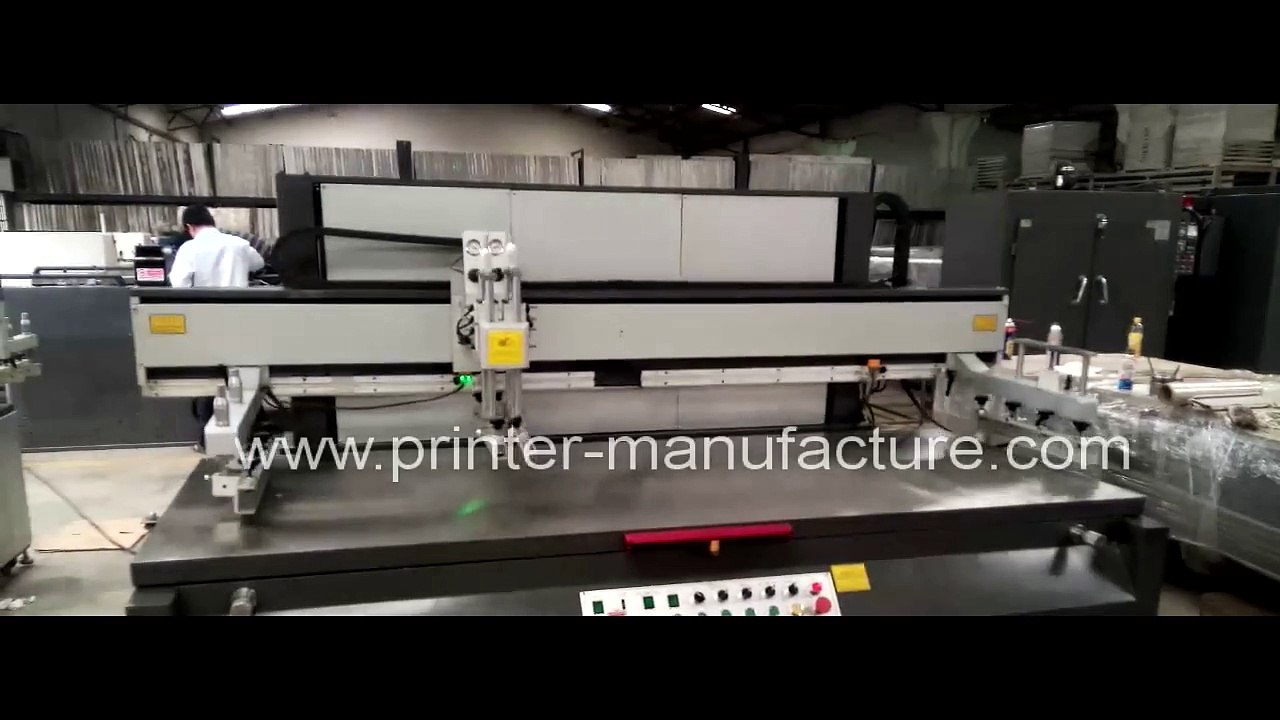

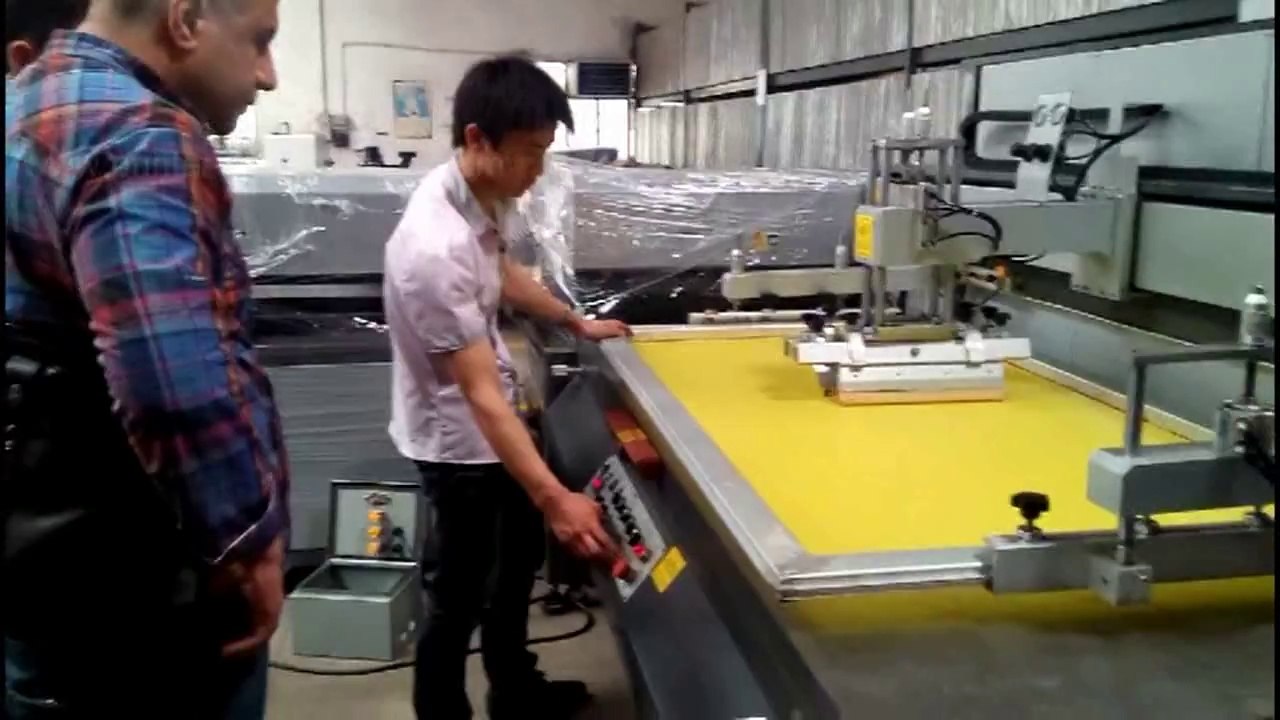

Large Size Flat Bed Screen Printing Machine

http://www.printer-manufacture.com/Large-Size-Flat-Screen-Printing-Machine-p913.html

Specification
1:Max.Printing Size: 800X2200(mm)
2:Max. Working Table size: 900X2400(mm)
3:Max. Frame Size: 1000×2500(mm)
4: Max. Product Thickness: 2-350（mm）
5: Working Capacity: 800pcs/h
6: Power Supply: 380V
7: Air compressor: 0.6-0.8Mpa
Application:
Suitable for printing substrates in Board, Sheet, Film or Cube forms which with smooth flat surface and made of as metal, plastic, ceramic, glass, wood etc..
Be widely used in electronic industry, advertising, packing & printing, toy, stationery, gifts, industrial arts fields etc..
Printing objects such as electronic accessories, rheostat, keyboards, silica gel keypads, paster, sticker, nameplate, panels, Plastic Moldings etc
Features:
1). Vertical structure, Compact & space-saving. PLC control, easy operation and good stability. Language optional, English or Chinese.
2). Printing driven by motor, Installed Linear Guide or Linear Guideway. Printing speed and ink flooding speed are adjustable. Running smoothly and a long work life.
3). Special cushion cylinder installed on the left/ right buffer gear.
4). The motor drive screen frame up and down, two poles guide. Separated buffering air course to keep stability register.
5). Duralumin working table( made according to the international standard cast aluminium JISH5302-2000 ), precise scale micro-adjustable. Planeness keep in 0.05mm, roughness
6). Printing angle/ printing pressure and spacing between screen frame and table are adjustable.
7). Reliable safety device is installed according to CE standard
