How to install Volvo dice 2013D

Volvo dice 2013D
http://www.obdii365.com/wholesale/2013-a-volvo-diagnostic-communication-equipment.html
Computer configuration:
Computer system: Windows 7 professional 64-bit
Processor: more than CPU 2.0 GHz
Install memory (RAM): at least 4GB
Local Disk (C:) require: 40GB free space

Step1 Install Volvo vida 2013D
Open DVD
Copy patch file to the desktop
Click Install --DVD-Vida dvdheader-Main-setup
If the window pops up this notice, click YES.

VIDA (2013D) will setup by itself, it will take you some time, please wait patiently!

Choose "VIDA All-in-one" to install
Choose language
Choose Destination Folder: C:\VIDA\. Click Next
Accept License Agreement

Framework 35 and security will be installed automatically

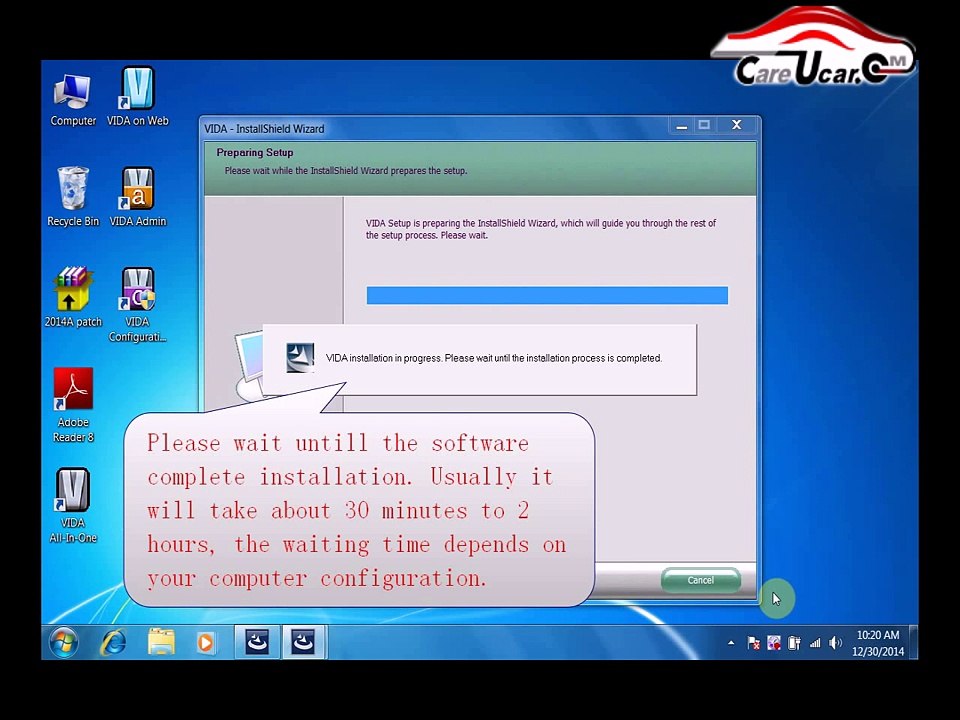

Vida InstallShield Wizard setup automatically, please wait patiently until it is completed.

After finish, Adobe Reader 8, VIDA all-in-one, Vida on web, Vida admin and Vida configurator are all on the desktop.

This is Vida Configurator for internet, click Save is Okay.

Vida is configuring your new software installation, it will take 20-30 minutes.

InstallShield Wizard Complete, select " No, I will restart my computer later", then click "Finish". Because I haven't install the patch.

Step2 Install patch
Unzip patch and open it
Click Install
If the window pops up this notice, click YES.
Default Destination Folder C:\ , don't change it

If the firewall block the program, click "Allow access"

Step3 Install driver software
Connect Vida adapter to the computer
Find the driver name in the device manager
Computer-management-computer management-device Manager, find out DiCE
Hardware-DiCE-206751@0000000000
If the driver name is incorrect, there are 3 possible reasons.
1) Software serial number is incorrect
2) System Language problem, better use English System.
3) The device is broken.

Step 4 Restart the computer

Step 5 Check vehicle information and diagnostics for aftersales
Open "VIDA all-in-one"
An IE browser will launch
Important Note: wait the icon at the lower right corner turn to green, then launch " VIDA All-in-one", if this icon is yellow or red, please wait patiently.

Input username "1" and click Login, it does not need to register
Note: you can't input the username if you don't install the patch and restart the computer.

Select DEFINE VEHICLE PROFILE
Click DICE CONFIGURATION- Test communication tool, then Click Run to self-test, click "Close"

Click "Read Vehicle"
Wait until all vehicle information read out, if some information can't read out automatically, choose them manually and click ok, otherwise, the "Diagnostics" icon is gray.

Click "Diagnostics", it will verify VIN and control modules automatically.

Click FAULT TRACE to search all ECU, Volvo car is safe, so it has many ECU.
Click Network to see the diagram of ECU, the car I are testing only has these ECU, some cars even have more ECU.

Only CEM can be communicated normally can other ECU be identified.
