High Voltage DC By Marx Generator Principles

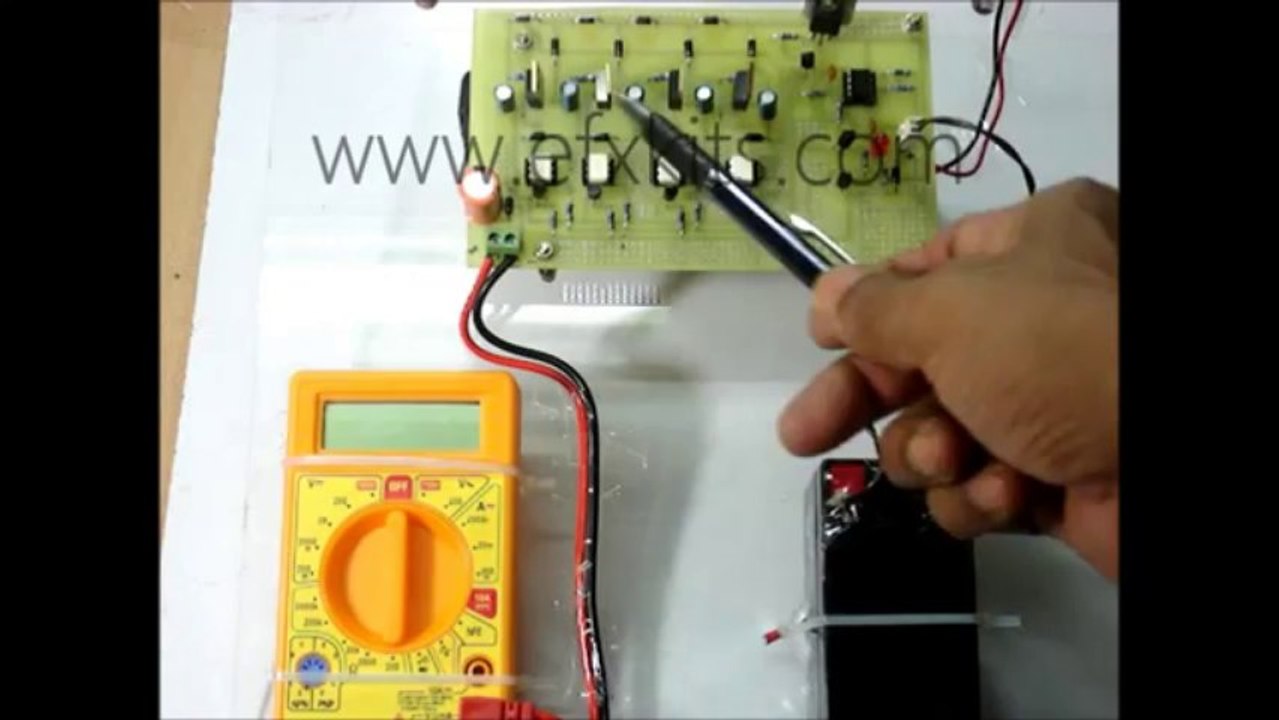

The aim of this project is High voltage Marx generator implementation using MOSFET/IGBT stacks. The Marx generator is composed of 4 stages and each stage is made of MOSFET/IGBT stacks, two diode stacks, and capacitors. MOSFET/IGBT stack is used as a single switch. Diode stacks and inductors are used to charge the high voltage capacitor at each stage without power loss. The proposed Marx generator implementation uses MOSFET/IGBT stack with a simple 555 driver. This system structure gives compactness and easiness to implement the total system from a DC supply of 12V to get 48V.

For complete information about this project, visit http://www.edgefxkits.com/high-voltage-dc-by-marx-generator-principles
