High Speed Single Facer
Description
High Speed Single Facer Yong Xiao
[email protected]
www.red-hope.net

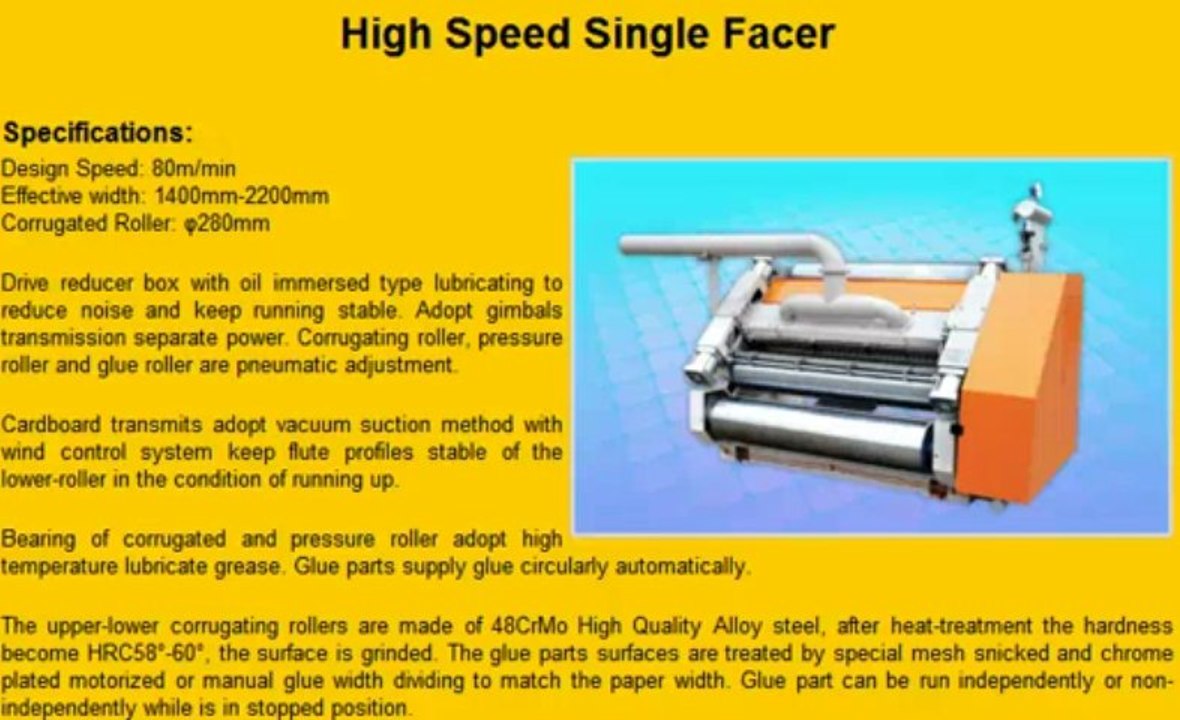

High Speed Single Facer
Specifications:
Design Speed: 80m/min
Effective width: 1400mm-2200mm
Corrugated Roller: φ280mm
Drive reducer box with oil immersed type lubricating to reduce noise and keep running stable. Adopt gimbals transmission separate power. Corrugating roller, pressure roller and glue roller are pneumatic adjustment.
Cardboard transmits adopt vacuum suction method with wind control system keep flute profiles stable of the lower-roller in the condition of running up.
Bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts supply glue circularly automatically.
The upper-lower corrugating rollers are made of 48CrMo High Quality Alloy steel, after heat-treatment the hardness become HRC58°-60°, the surface is grinded. The glue parts surfaces are treated by special mesh snicked and chrome plated motorized or manual glue width dividing to match the paper width. Glue part can be run independently or non-independently while is in stopped position.
[email protected]
www.red-hope.net
High Speed Single Facer
Specifications:
Design Speed: 80m/min
Effective width: 1400mm-2200mm
Corrugated Roller: φ280mm
Drive reducer box with oil immersed type lubricating to reduce noise and keep running stable. Adopt gimbals transmission separate power. Corrugating roller, pressure roller and glue roller are pneumatic adjustment.
Cardboard transmits adopt vacuum suction method with wind control system keep flute profiles stable of the lower-roller in the condition of running up.
Bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts supply glue circularly automatically.
The upper-lower corrugating rollers are made of 48CrMo High Quality Alloy steel, after heat-treatment the hardness become HRC58°-60°, the surface is grinded. The glue parts surfaces are treated by special mesh snicked and chrome plated motorized or manual glue width dividing to match the paper width. Glue part can be run independently or non-independently while is in stopped position.
