DIY Wireless Energy Transfer System

Project file on Free Circuit Editor: \r
Project file on Free Circuit Editor: \r
\r
Previous video: \r
Previous Wireless Energy Transfer video: \r
Facebook: \r
Twitter: \r
Support me for more videos: \r
Project information (schematic, pictures, ..) on Instructables: \r
Würth Elektronik Article: \r
\r
Thanks to EasyEDA for sponsoring this video.\r
Check out their free circuit design tool here: \r
\r
Parts list: (see Instructables article for Amazon.de links)\r
Amazon.com:\r
4x IRLZ44N MOSFET: \r
2x IR2113 MOSFET Driver IC: \r
1x Resistor Kit: \r
1x Capacitor Kit: \r
1x Electrolytic Capacitor Kit: \r
2x UF4007 Diode: \r
3x Screw Terminal: \r
1x 7805 Voltage regulator: \r
1x TLC555 IC: \r
1x 74HC4049 IC: \r
1x 10k Trimmer: \r
Ebay:\r
4x IRLZ44N MOSFET: \r
2x IR2113 MOSFET Driver IC: \r
1x Resistor Kit: \r
1x Capacitor Kit: \r
1x Electrolytic Capacitor Kit: \r
2x UF4007 Diode: \r
3x Screw Terminal: \r
1x 7805 Voltage regulator: \r
1x TLC555 IC: \r
1x 74HC4049 IC: \r
1x 10k Trimmer: \r
\r

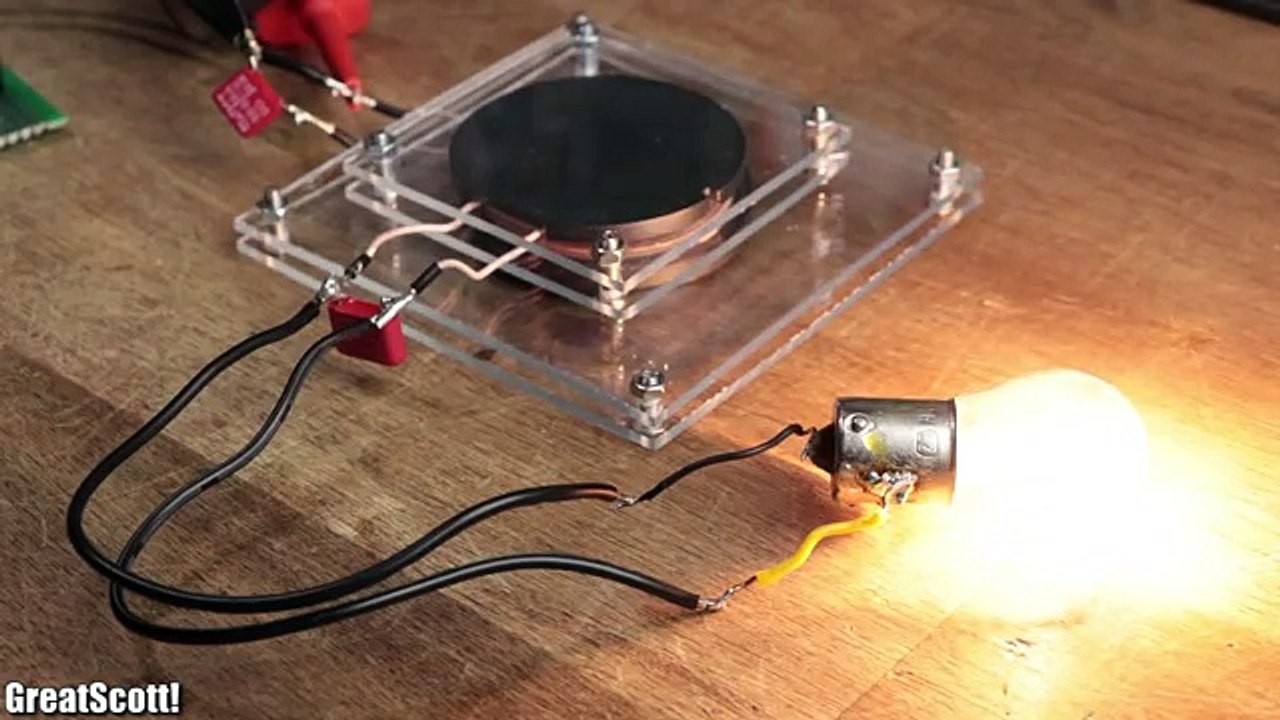

In this project I will show you how to create an appropriate coil and an inverter circuit for a wireless energy transfer system that can easily transfer a power of 20W.\r
