Ceramic duck down sensor module wire feeding soldering process

Songsheng photoelectric laser constant temperature tin welding

Ceramic duck down sensor module wire feeding soldering process

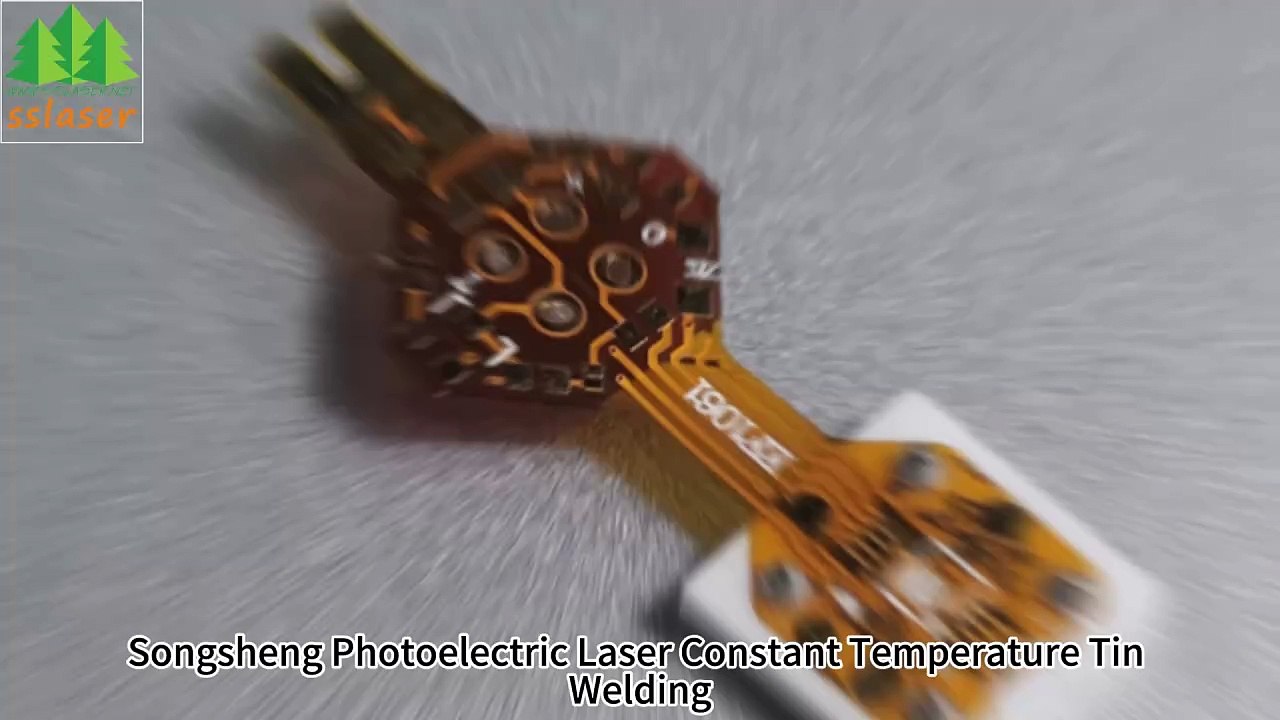

In this sample, the flexible circuit board and the pin on the ceramic plate need to be welded and fixed

Welding using the temperature mode wire feed process

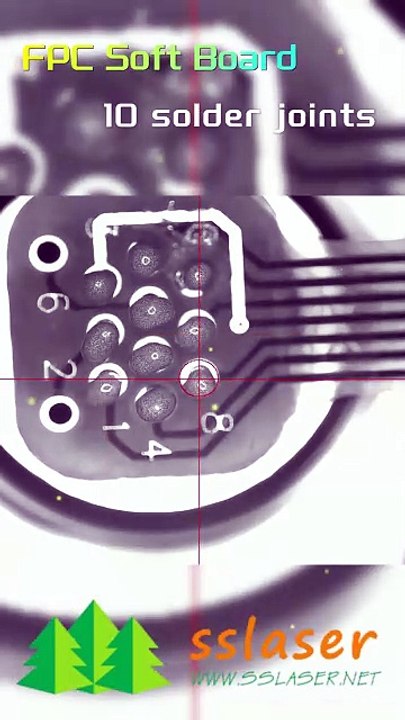

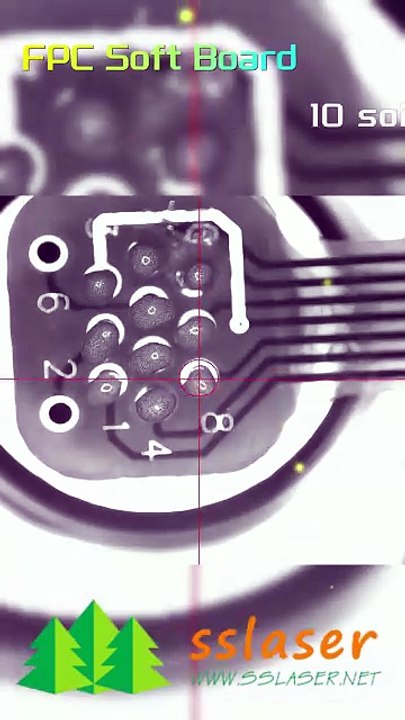

CC coaxial visual positioning and temperature feedback function

Feedback through real-time monitoring of the temperature of the welding joint

It can effectively ensure the constant temperature welding of welding points and the accurate alignment of precision parts

Ensure effective yield in mass production
