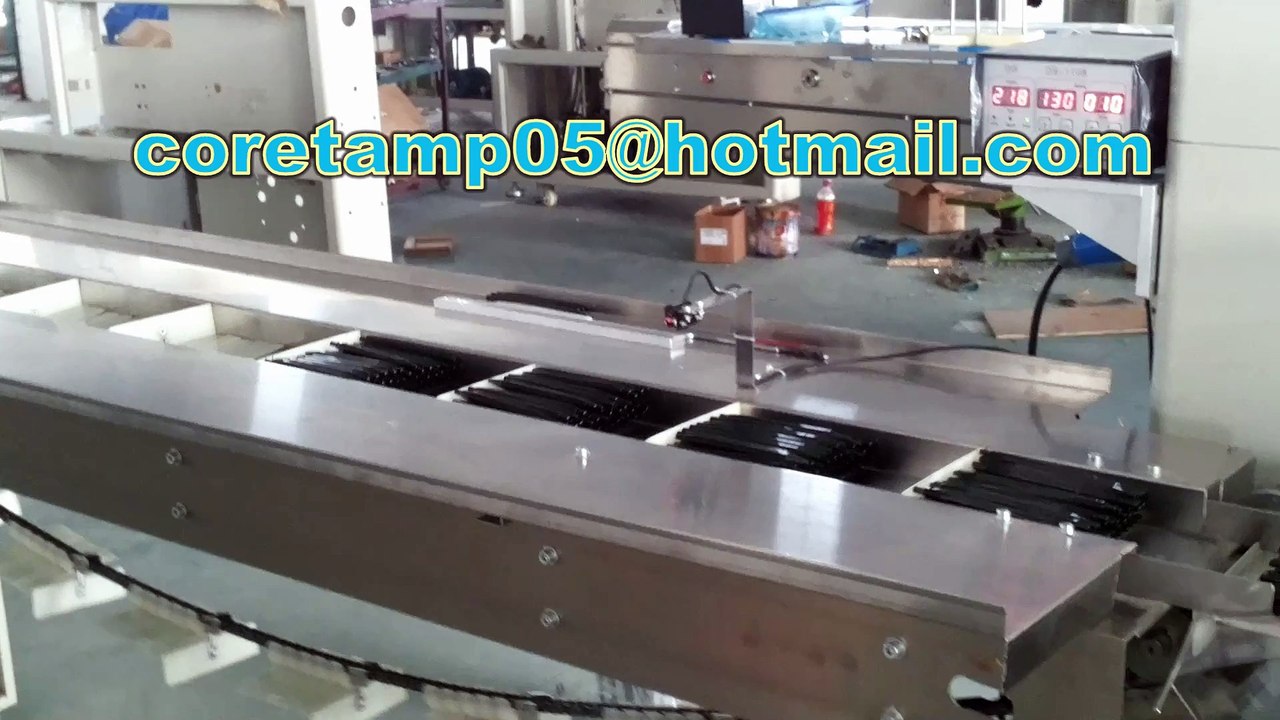

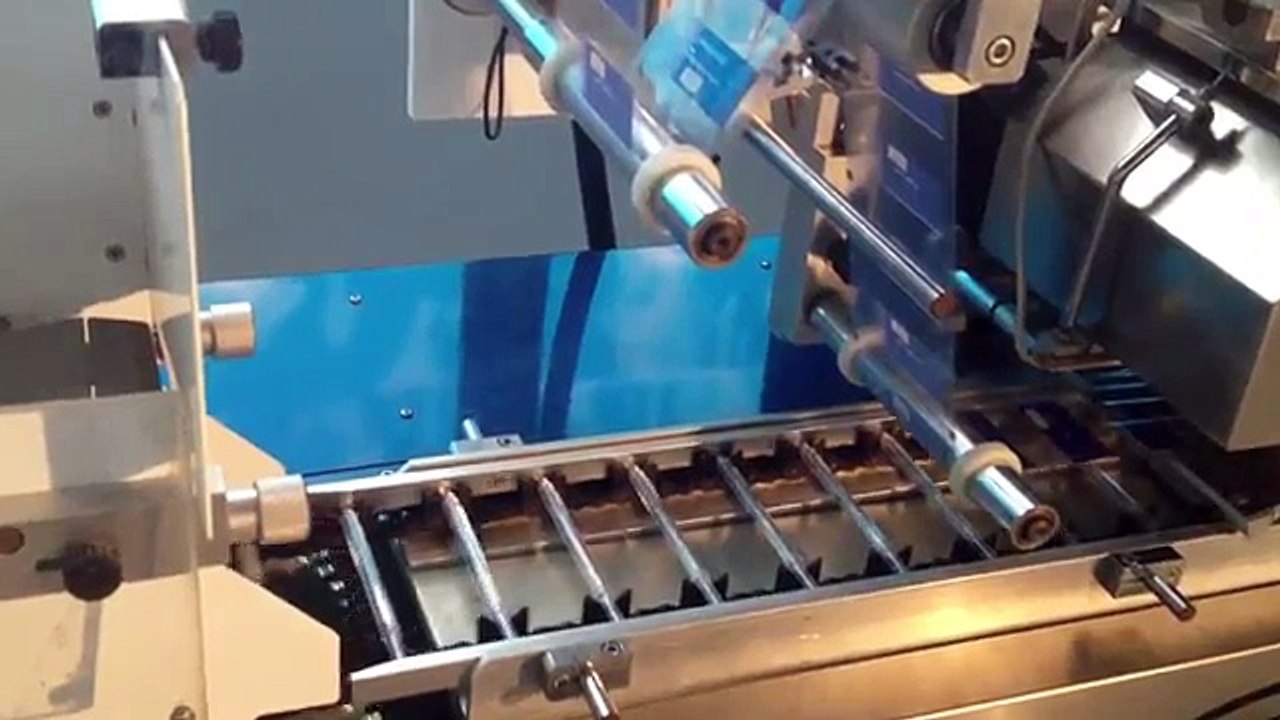

Automatic Heat Transfer Machine for Pens

http://www.ecpnp.com/Automatic-Heat-Transfer-Machine-for-Pen-Rod-232.htm

Application
Automatic Pen Rod Heat Transfer Machine is widely fitting for transferring cylinder products such as pens, ball point pens, eyebrow pens, lid tubes etc.
Specification
1.Maximum Diameter:6～20 mm
2.Maximum length: 60～160 mm
3.Transferring Stroke: 0～80 mm
4.Working Capacity: 2800 pcs/hr
5.Power Supply: 220V/50HZ
6.Net Weight:500kg
7.Outside Dimension: 2300×1750×830mm
Features

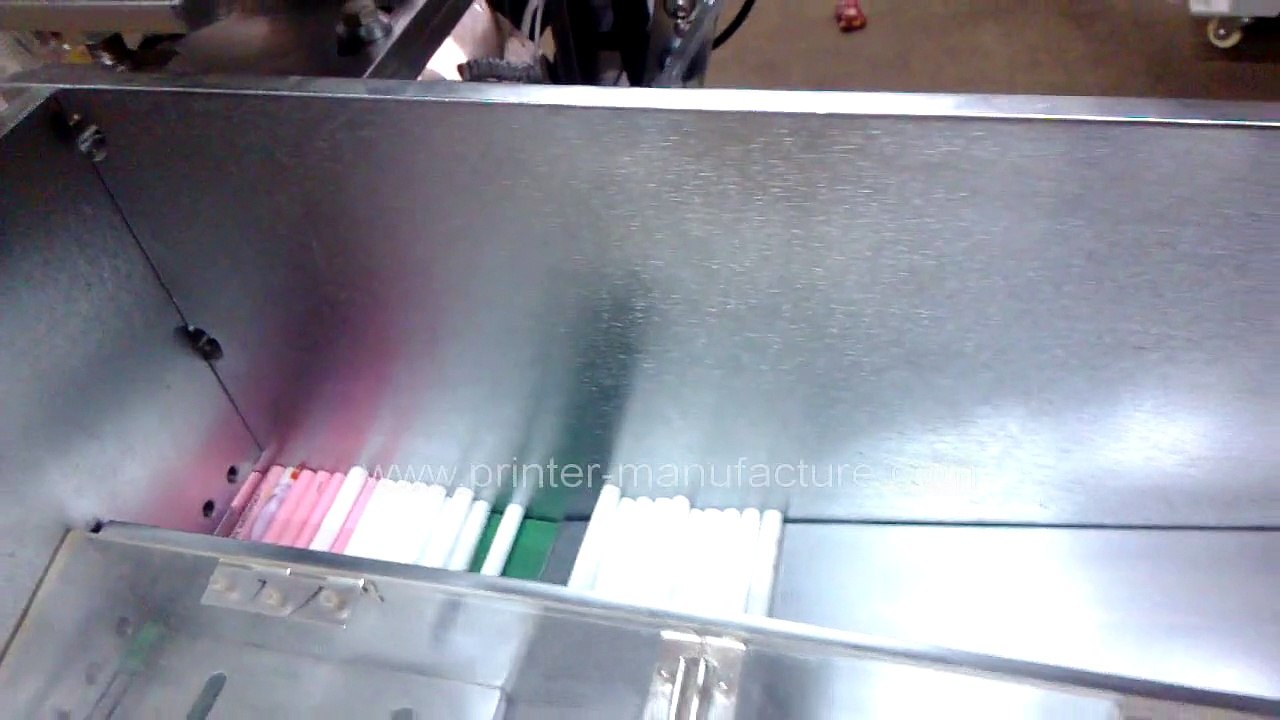

1.Fully automatic feeding and loading system.
2.Gear rack way for assuring the stable and smooth feeding moving
3.Roller and transfer film are synchronous for distinguish wrinkle phenomenon.
4.Micro Adjustable heating plates
5.Machine’s structure is fitting for operation worker’s customs, more humanize.
6.Taiwan's balance torque converter control operation, to ensure consistent transfer effect
7.High working capacity at maximum 2800pcs per hour, bigger feeder for realizing no supervision.
