Asphalt Paver Machine

KEY FEATURES
 Powered with Kirloskar / Ashok Leyland Engine
 Chain – Renold / Diamond
 Hydraulic Cylinder – Tafe / Dental
 Screed Plate Hardox – 400 / S.S
 Stearing Unit Sauer Danfoss
 Auger Diameter – 300 mm (Ni – Hard Material)
 Tyre – Ceat / J.K.
 Battery – Amaron / Exide
 Priority Valve Provision

Technical Specifications
MODEL AEP 4.5 HES ( HOT MIX ) AEP 4.5 HES (WET MIX )
Material Suitability Bituminous Material Bituminous , Wet Mix
Operating Height 3010 mm 3010 mm
Shipping Height 2200 mm 2200 mm
Length 5600 mm 5600 mm
operating width 3050 mm 3050 mm
Shipping width 2750 mm 2750 mm
Weight ( Approx. ) 9.5 tons 10 ton
Truck Dumping Clearance 600 mm 600 mm
Wheel Base 2500 mm 2500 mm
Engine Base
Kirloskar BS III Model 4R1040TC
or Equivalent
Leyland BS III model ALHT4CTIC3
Kirloskar BS III Model R1040TA3
or Equivalent
Engine Output 76 HP @ 2200 rpm 105 HP @ 2200 rpm
Battery 12 Volts ( Heavy Duty ) 12 Volts ( Heavy Duty )
Tyres : Front 2 nos.- Solid Rubber 558 * 405 * 305 mm 558 * 405 * 305 mm
Tyres : Rear 2 nos.- Pneumatic 12*20-18 ply 12*20-18 ply
Paving Thickness 10-200 mm 10-200 mm
Paving Speed 1.25-23 meters 1.25-23 meters
Paving Width
2.5 - 4.5 meters ( Hydraulically
Extendable Screed )
2.5 - 4.5 meters ( Hydraulically
Extendable Screed )
Travel Speed 0-16 KMPH 0-16 KMPH
Steering Power Steering Power Steering
Hopper Capacity ( Approx. ) 4 Cubic Meters 4 Cubic Meters
Fuel Tank Capacity 120 Litres 120 Litres
Hydraulic Oil Tank Capacity 60 Litres 60 Litres
Screed Heating 2 Nos. Oil Burner or LPG 2 Nos. Oil Burner or LPG
Auger Diameter 300 mm 300 mm
Screed Vibration 0-30 Hz 0-30 Hz
Crown -TO1+3 -TO1+3
Standard Accessories Tool Box Tool Bo


Brief Description


Model :-AEP - 45 HES Dual Applicable
Engine: Kirloskar Model - 4R1040 Turbo - 105
HP Ashok Leyland Model - AL400C2
Paving Width :2.5 to 4.5 M

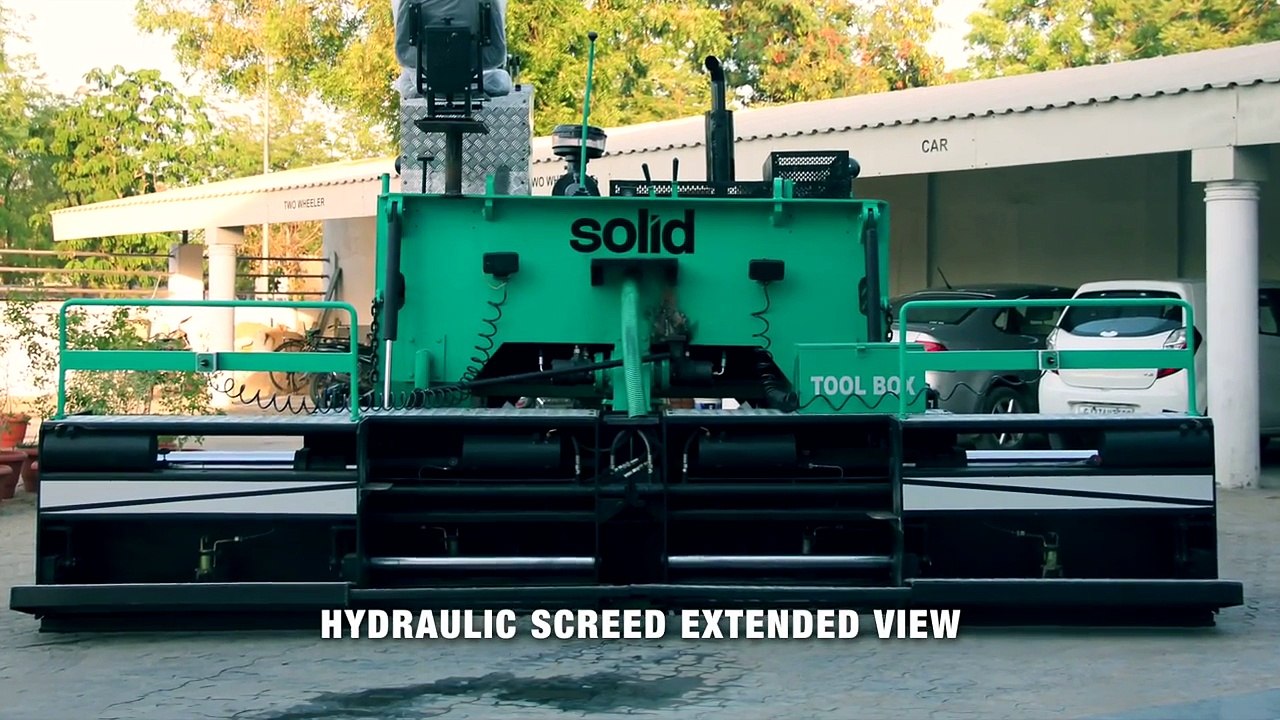

Screed: Hydraulically Extendable Vibratory Screed
Model: AEP 45HES Hot Mix
Engine: Kirloskar Model - 4R104076 HP
Paving Width :2.5 to 4.5 M
Screed: Hydraulically Extendable Vibratory Screed
