Adjustable Air Amplifiers

F
Frank Swing

10 Views • Jun 28, 2011

Description

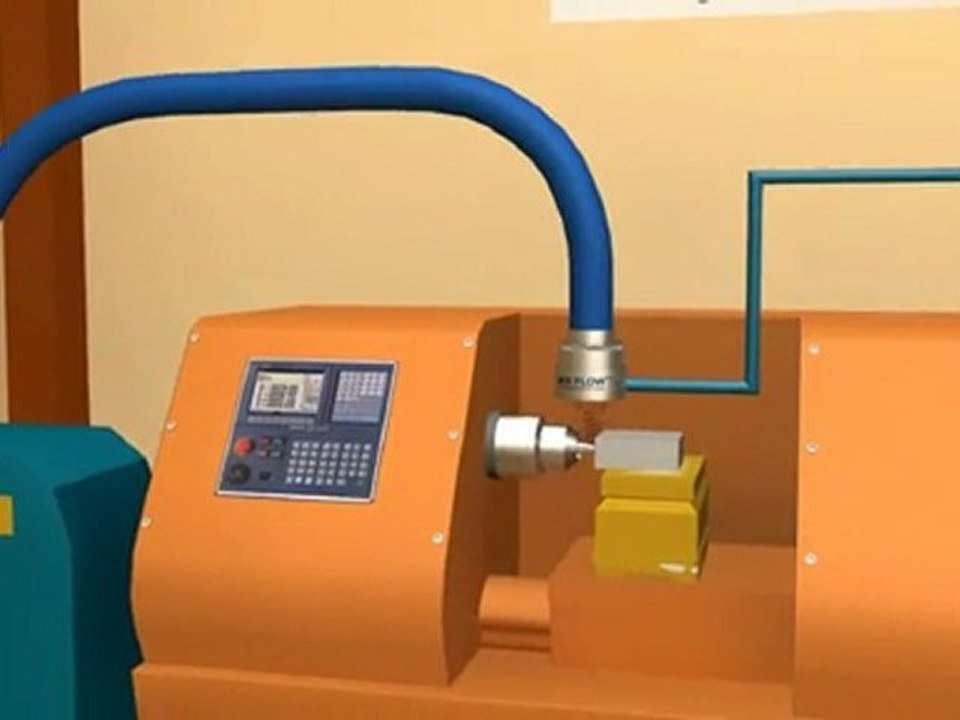

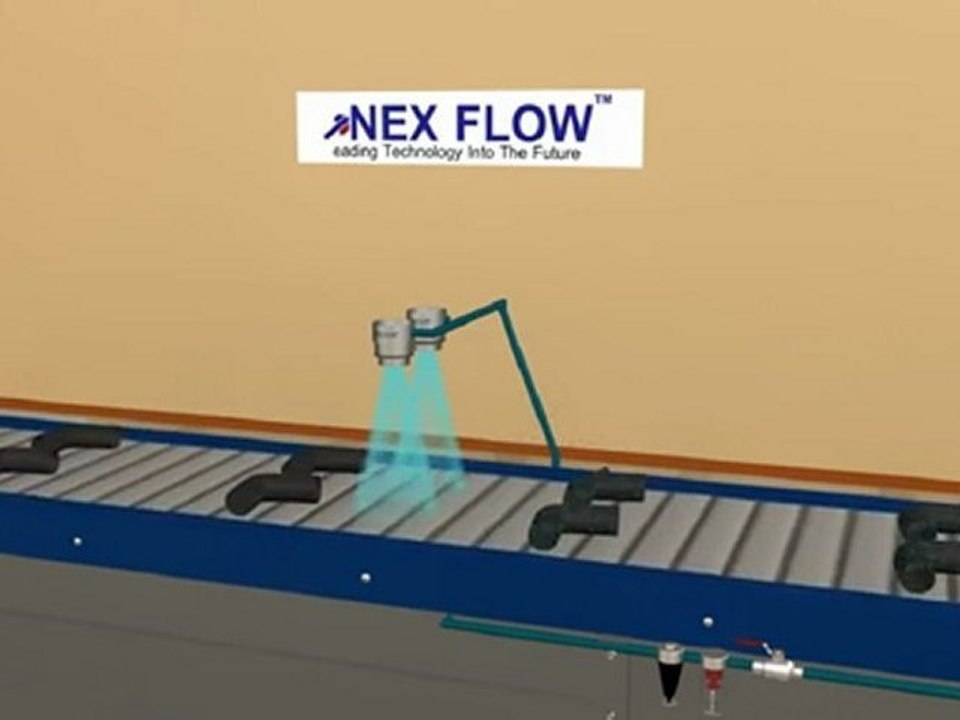

http://nexflowair.com/adjustable_air_amplifier_how_they_work.php A large volume of surrounding air is induced into the amplifier at point (A) by the action of a small amount of compressed air which enters the annular chamber at point (B) that is then throttled through a small ring nozzle at high velocity and into the inside of the amplifier over a coanda profile. The compressed air stream clings to the coanda profile as it enters the inside walls of the amplifier creating a vacuum that induces the outside air converting the pressure into amplified airflow. The amplified airflow leaves at the exit at point (C). Airflow is further amplified downstream at point (D) by entraining additional air from the surroundings at the exit.
